GB2-Series Ultra-Thin Pushbutton Switches
GB2-Series Ultra-Thin Pushbutton Switches
- Patented offset actuator allows easy actuation and complements small size, which permits block mounting.

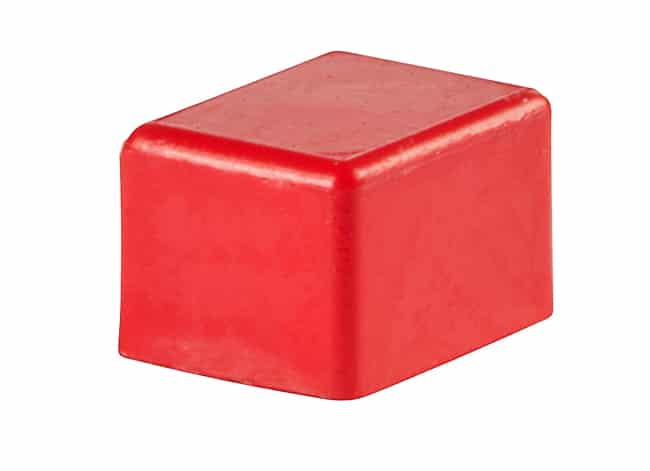

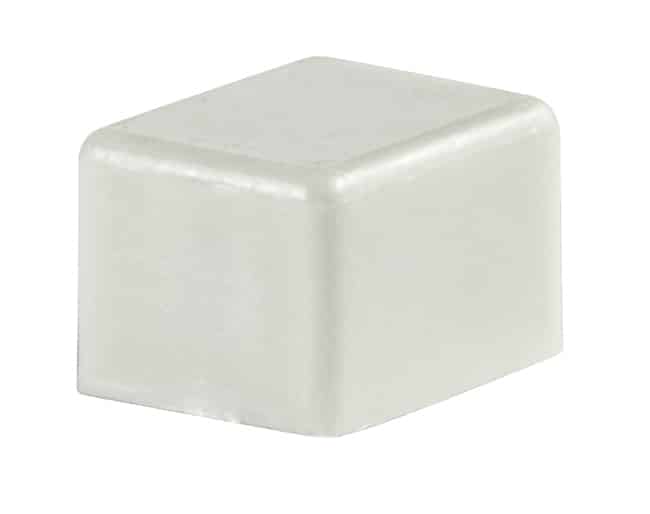

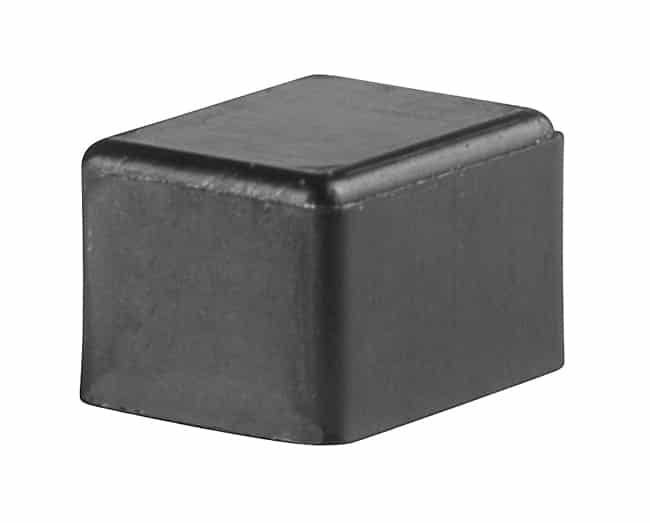

- Various colored pushbutton actuators. Patented Sliding Twin Crossbar (STC) mechanism provides unequalled logic-level reliability and smoother, positive detent actuation.
- Extremely thin size allows for high-density PCB mounting and makes these switches ideal for handheld equipment.
- Molded-in, epoxy-sealed terminals lock out flux and other contaminants. .100" x .100" terminal spacing conforms to standard PC board grid spacing for straight and angle mounting.
