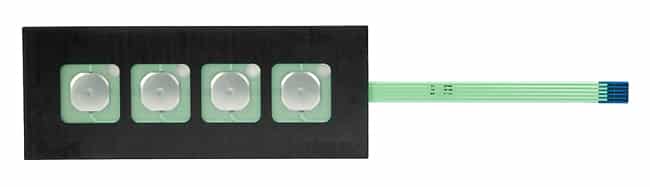

FMBN04BD

SWITCH KEYPAD 4 KEY 0.02A 24V

FM Series
SWITCH KEYPAD 4 KEY 0.02A 24V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
FMBN04BD
Description
SWITCH KEYPAD 4 KEY 0.02A 24V
Name
Membrane Keypad
Series
FM
switch type
Membrane (Snap Dome)
no keys
4
matrix
1 x 4
Illumination
Non-Illuminated
legend type
Interchangeable
key type
Polyester Overlay
Output Type
Matrix
legend
Customizable (Included)
key color
Transparent
Mounting Type
Panel Mount, Front
Termination Style
Cable with Connector
Operating Temperature
-15°C ~ 55°C
Contact Rating
0.02A @ 24VDC
