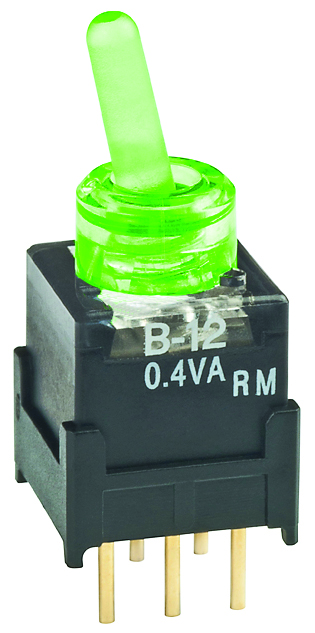

B-Series Subminiature Fully Illuminated Toggle Switches
Subminiature Fully Illuminated Toggles
  • 0.4VA Logic Level
  • LED provides max illumination to bushing and actuator, indicating actuator status in highly visible green, red or amber for single color or red/green for bicolor.
  • Totally sealed body construction prevents contact contamination and allows time and money-saving automated soldering and cleaning.
  • Award-winning STC contact mechanism offers benefits unavailable in conventional mechanisms: smoother, positive detent actuation, increased contact stability and unparalleled logic-level reliability.
  • .100" x .100" terminal spacing conforms to standard PCB grid spacing.


View Parts for B-Series

Subminiature Fully Illuminated Toggles

Subminiature Fully Illuminated Toggles

Download Specifications 3D CAD Model
G-Series Fully Illuminated Ultra-Miniature Illuminated Toggle Switches
Fully Illuminated Ultra-Miniature Toggles
  • 0.4VA Logic Level
  • Ultra-miniature size allows high density mounting, and extremely light weight of 0.25 grams makes switch ideal for handheld equipment.
  • Totally sealed construction prevents contact contamination and allows for automated soldering and cleaning.
  • Award-winning STC contact mechanism offers benefits unavailable in conventional mechanisms: smoother, positive detent actuation, increased contact stability and unparalleled logic-level reliability.
  • Molded-in, epoxy sealed terminals lock out flux, solvents and other contaminants.


View Parts for G-Series

Ultra-Miniature Fully Illuminated Toggles

Ultra-Miniature Fully Illuminated Toggles

Download Specifications 3D CAD Model
G Indicator

G Indicator

Download Specifications 3D CAD Model
M2100-Series LED Tipped Toggle Switches
LED Tipped Toggles
  • 6A Power Lever & 0.4VA Logic Level
  • Industry-first technology of LED Illumination at tip of toggle.
  • Single color LEDs of red, yellow, and green, plus bi-color red/green to meet varied design requirements.
  • LEDs can operate independently from or synchronously with switching operation.
  • Anti-jamming feature to protect contacts from damage due to excessive downward force on toggle.


View Parts for M2100-Series

TL-Series Fully Illuminated Toggle Switches
TL-Series Fully Illuminated Toggle Switches
  • 6A Power Level & 0.4VA Logic Level; Bushing Mount, Fully Illuminated Toggle, IP65.
  • Choice of long or short toggles in translucent colors combine with bright LEDs available in red, amber, and green, plus super bright LEDs available in white, green, and blue.
  • Black-face nut enhances front-panel appearance.
  • Antistatic material used for toggle withstands 20 kilovolts electrostatic discharge.

View Parts for TL-Series

Fully Illuminated Toggle

Fully Illuminated Toggle

Download Specifications 3D CAD Model
JWS-Series Internationally Approved Rocker Switches
Internationally Approved Rockers
  • 6A Power Level; Snap-in Mount, High Inrush TV Rated, UL, CSA, cULus, VDE
  • Rocker caps and housing available in a variety of colors.
  • Protective barrier available to prevent accidental actuation.
  • Constructed for dust resistance with interior cover of polyamide between actuator and contact area.


View Parts for JWS-Series

Internationally Approved Rockers

Download Specifications 3D CAD Model
LW-Series High Capacity Screw Mount Illuminated Rocker Switches
Power-Rated Snap-in Illuminated Rocker Switches
  • 20A Power Level; Frame Mount, High Capacity, 110V Neon Lamp
  • Single pole, single-throw device with double-break contacts.
  • Assembled with a neon lamp that contains a built-in resistor.
  • Numerous lighting effects achievable by using white or clear rocker with colored filters or lamp covers, plus using different colors on each side of rocker.

View Parts for LW-Series

Hi Capacity Screw Mount Rockers

Hi Capacity Screw Mount Rockers

Download Specifications 3D CAD Model
LW-Series Power-Rated Snap-in Illuminated Rocker Switches
Power-rated Snap-in Illuminated Rockers
  • 10A Power Level; Snap-in Mount, Incandescent and Neon Illumination, UL, CUL
  • Each half of the rocker face is distinctly illuminated due to partitioned rocker construction and dual lamps.
  • Selection of colored rocker filters and lamp covers provides numerous lighting combinations.
  • Snap-in mounting allows fast, easy installation of switch into panel.


View Parts for LW-Series

Power Rated Snap-in Rockers

Power Rated Snap-in Rockers

Download Specifications
M2100-Series LED Tipped Illuminated Rocker & Paddle Switches
LED Tipped Rockers and Paddle Switches
  • 6A Power Level & 0.4VA Logic Level; Snap-in, Frame and PCB Mount; Single or Bicolor LED, UL, CSA
  • Industry's first LED illumination at tip of toggle and paddle switches.
  • Single or bicolor LEDs meet varied design requirements.
  • Anti-jamming feature protects contacts from damage caused by excessive downward force on the toggle.


View Parts for M2100-Series

LED Tipped Rockers and Paddles

LED Tipped Rockers and Paddles

Download Specifications 3D CAD Model
MLW-Series Snap-in Miniature Illuminated Rocker Switches
Snap-in Miniature Illuminated Rocker Switches
  • 5A Power Level; Snap-in Mount; LED, Incandescent and Neon Illumination, UL, cULus
  • Industry's first miniature snap-in, lighted rocker switch. Patented internationally.
  • Actuators in various styles operate with firm, well-defined movements.
  • Interlocking actuator prevents switch failure due to jamming or window locking.


View Parts for MLW-Series

Snap-In Mount Power Rated Rockers

Snap-In Mount Power Rated Rockers

Download Specifications
Printing Services Available
EB-Series Light Touch Miniature Pushbutton Switches
Light Touch Miniature Pushbuttons
  • 3A Power Level & 0.4VA Logic Level; Snap-in, Bushing and PCB Mount, Light Touch Actuation, UL, CSA, cULus
  • Power- and logic-level capabilities are available to suit varying applications.
  • Pushbutton models have light-touch actuation.
  • The high torque bushing prevents separation or rotation of the bushing from the metal frame during installation.
NKK_Custom_Printing_Services

View Parts for EB-Series

Light Touch Miniature Pushbuttons - Bushing Mount

Light Touch Miniature Pushbuttons - Bushing Mount

Download Specifications 3D CAD Model
Light Touch Miniature Pushbuttons - Snap In

Light Touch Miniature Pushbuttons - Snap In

Download Specifications 3D CAD Model
Legends

Legends

Download Specifications
Printing Services Available
FP01-Series Contactless Illuminated Pushbutton Switches
FP01-Series Contactless Illuminated Pushbutton Switches
  • Brilliant illumination for highly visible status indication with LEDs and caps in red, green, or amber; subdued illumination for low light requirements with white cap over red, green, or amber LEDs.
  • Photo interrupter, rather than contacts, ensures high reliability and long life of 3 million operations minimum. Rugged construction and smooth actuation allow repeated, rapid actuation force anywhere on cap surface. Snap-in mounting for easy installation. Connector socket with 6 pins for simple connection.
  • Well-suited for gaming and vending machines, as well as equipment exposed to corrosive gases used in environments such as chemical or steel manufacturing plants.
NKK_Custom_Printing_Services

View Parts for FP01-Series

Contactless Illuminated Pushbutton Switches

Contactless Illuminated Pushbutton Switches

Download Specifications
GB-Series Ultra-Miniature Fully Illuminated Plungers
Ultra-miniature Fully Illuminated Pushbutton Plungers
  • 0.4VA Logic Level; PCB Mount, Fully Illuminated Plunger.
  • Highly visible status indication with single color LED in red, green, or amber.
  • Ultra-miniature size allows high-density mounting, and extremely light weight makes these switches ideal for handheld equipment.


View Parts for GB-Series

Ultra-Miniature Fully Illuminated Plungers

Ultra-Miniature Fully Illuminated Plungers

Download Specifications 3D CAD Model
HB-Series Subminiature Illuminated Pushbutton Switches
HB-Series Subminiature Illuminated Pushbutton Switches
  • Full face and spot illumination available. Front panel relamping. Choice of super bright LEDs in white, green, and blue, in addition to bright red, amber, and green LEDs. Non-illuminated models available.
  • Compact front-panel design with .354" square or round bezel. Rear panel threaded mounting. Behind-panel depth of less than one inch. 8mm (.315") body diameter fits common size panel cutout. Latch-down feature gives indication of circuit status.
  • Audible and tactile feedback with smooth and responsive operation. Dual sliding contacts with self-cleaning action provide contact stability, high reliability, and increased operating life.
  • Solder-lug terminals have spacing of .100" for choice of mounting. Longer normally closed terminal facilitates wiring and soldering. Molded-in terminals lock out flux, dust, and other contaminants.

View Parts for HB-Series

Illuminated Subminiature Pushbuttons

Illuminated Subminiature Pushbuttons

Download Specifications 3D CAD Model
HB Subminiature Indicators

HB Subminiature Indicators

Download Specifications 3D CAD Model
Printing Services Available
HB2-Series Subminiature Illuminated Pushbutton Switches
HB2-Series Subminiature Illuminated Pushbutton Switches
  • 0.4VA logic level; PCB mount, bicolor LED Illumination. Quiet actuation combined with crisp tactile feedback suited for broadcast equipment.
  • Full-face illumination with choice of red/green or red/yellow bicolor LEDs, as well as simultaneous bicolor illumination which produces amber. Option of legends on caps or film insert.
  • Compact design with short body 17.0mm (.669") from PCB to top of cap and 7.5mm (.295") square cap. Sliding Twin Crossbar (STC) mechanism provides unequalled logic-level reliability, contact stability, smooth positive detent actuation, and long life.
  • Crimped power terminals ensure secure PCB mounting and prevent dislodgment during soldering.
  • Suitable applications include broadcast, telecommunication, and medical equipment, as well as measuring instruments, etc.
NKK_Custom_Printing_Services

View Parts for HB2-Series

Quiet Actuation Illuminated Pushbuttons

Quiet Actuation Illuminated Pushbuttons

Download Specifications 3D CAD Model
Printing Services Available
KB-Series Miniature Illuminated Pushbutton Switches
Miniature Pushbutton Switches
  • 1A Power Level & 0.4VA Logic Level; Snap-in and Bushing Mount; Incandescent, Neon and LED Illumination; Square, Round and Rectangular Cap Options, UL, CSA, cULus
  • Bright illumination with numerous color variations. Spot illumination available. Square, rectangular, and round shaped caps.
  • Incandescent, LED, and neon lamps. Front panel relamping.
  • Choice of super bright LEDs in white, green,and blue, or red, amber, and green bright LEDs.
NKK_Custom_Printing_Services

View Parts for KB-Series

Illuminated Miniature Pushbuttons

Illuminated Miniature Pushbuttons

Download Specifications
KB Miniature Indicators

KB Miniature Indicators

Download Specifications 3D CAD Model
Legends

Legends

Download Specifications
Printing Services Available
KP-Series Miniature Audio/Video Illuminated Pushbutton Switches
Miniature Audio/Video Pushbuttons
  • 100mA Logic Level; PCB Mount; Bicolor and RGB LED Illumination; Flat, Sculptured and Home Key Caps
  • Complete switch solution for all broadcast panel needs, including home keys and the custom rectangular switch/cap assembly.
  • Distinct, long total travel of .177" (4.5mm) for KP01 or shorter stroke of .138" (3.5mm) for KP02.
  • Available with red/green bicolor LED and custom RGB LEDs full color spectrum.
NKK_Custom_Printing_Services

View Parts for KP-Series

KPRGB-Series Miniature Audio/Video 4-Pin RGB Illuminated Pushbutton Switches
KP Series RGB Expansion – 4-Pin
  • NKK announces the expansion of the popular KP Series Miniature Audio/Video Pushbuttons with the new Miniature Audio/Video 4-Pin RGB Pushbuttons.
  • The new KP offering features reduced 4 LED pin terminals and an improved profile for soldering specifications of 410ºC @ 4 sec for 2 cycles.
  • The super bright RGB LED provides vibrant full color spectrum of unlimited color options.
  • Available in tactile, non-tactile or tactile/audible actuation.

View Parts for KPRGB-Series

KP Series RGB Expansion - Four Pin

KP Series RGB Expansion - Four Pin

Download Specifications 3D CAD Model
Printing Services Available
LB-Series Standard Illuminated Pushbutton Switches
Standard Size Illuminated Pushbuttons
  • 3A Power Level & 0.4VA Logic Level
  • Snap-in and Bushing Mount
  • Incandescent, Neon and LED Illumination
  • Square, Round and Rectangular Cap Options
  • IP65 Options, UL, CSA, cULus
NKK_Custom_Printing_Services



View Parts for LB-Series

Snap-In Mount Illuminated Pushbuttons

Snap-In Mount Illuminated Pushbuttons

Download Specifications
Panel Seal Illuminated Pushbuttons

Panel Seal Illuminated Pushbuttons

Download Specifications
LB Indicator

LB Indicator

Download Specifications 3D CAD Model
Legends

Legends

Download Specifications
Printing Services Available
LP01-Series Short Body Illuminated Pushbutton Switches
Short Body Illuminated Pushbutton Switches
  • 3A Power Level; Snap-in and Bushing Mount, LED Illumination, Tamper Resistant Cap, UL, cULus
  • Illuminated/non-illuminated
  • Environmentally friendly components and packaging materials meet RoHS Directive restricting use of hazardous materials. Suited for lead-free soldering because of heat-resistant resin materials.
  • Smooth, slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampering.
NKK_Custom_Printing_Services

View Parts for LP01-Series

Short Body Illuminated Pushbutton Switches

Short Body Illuminated Pushbutton Switches

Download Specifications 3D CAD Model
LP01-Series Spot Illuminated Pushbutton Switches
LP01-Series Spot Illuminated Pushbutton Switches
  • Vivid, super bright LED spot illumination in red, amber or green provides easy status recognition.
  • Smooth, slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampering.
  • Short body of .551” (14.0mm) conserves behind-panel space.
  • Combination solder lug and .110” quick connect terminals are epoxy sealed to prevent entry of flux, dust, other contaminants.

View Parts for LP01-Series

LP01-Series Spot Illuminated Pushbutton Switches

LP01-Series Spot Illuminated Pushbutton Switches

Download Specifications 3D CAD Model
Printing Services Available
MB2400-Series Miniature Pushbutton Switches
MB2400-Series Miniature Pushbutton Switches
  • Short stroke and light touch. Internal o-ring protects against contamination. High-torque bushing construction prevents rotation or separation from frame during installation.
  • Anti-jamming design protects contacts from damage caused by excessive downward force on the actuator. Stainless-steel frame resists corrosion. Longer center solder lug terminal simplifies wiring and soldering.
  • Patented silver contacts of specially composed alloy for hardness. Epoxy-sealed terminals prevent entry of solder flux and other contaminants. Snap-acting mechanism gives smooth actuation and audible feedback.
  • Prominent external insulating barriers increase insulation resistance and dielectric strength.
NKK_Custom_Printing_Services

View Parts for MB2400-Series

Bushing Mount Pushbuttons

Bushing Mount Pushbuttons

Download Specifications 3D CAD Model
Angle Mount PC Pushbuttons

Angle Mount PC Pushbuttons

Download Specifications 3D CAD Model
Snap-in Mount Pushbuttons

Snap-in Mount Pushbuttons

Download Specifications 3D CAD Model
Legends

Legends

Download Specifications
NP01-Series Subminiature Smooth Actuation Illuminated Pushbutton Switches
Subminiature Smooth Actuation Pushbuttons
  • 0.4VA Logic Level; PCB Mount; Single and Bicolor LED Illumination; Soft Touch Actuation, Alternating Legend Options
  • Soft-touch actuation achieved by mechanical silicon rubber structure (patent pending).
  • Distinct, long stroke of 1.5mm (.059”).
  • Entire cap is fully illuminated with single or bicolor LED.


View Parts for NP01-Series

Subminiature Smooth Actuation Pushbuttons

Subminiature Smooth Actuation Pushbuttons

Download Specifications
Printing Services Available
UB-Series Low Profile Illuminated Pushbutton Switches
Low Profile Pushbutton Switches
  • 5A Power Level & 0.4VA Logic Level; Snap-in and PCB Mount; LED Illumination; Square and Rectangular Cap Options; Full Face and Spot Illumination, UL, CSA, cULus
  • Wide selection of illumination effects is achieved with single and bicolor LEDs, in flat, beveled, or sculptured caps. LED colors include red, amber, green, white, blue, and orange.
  • Non-illuminated models available.
  • Combination of PCB mountability and short body allows for use in compact applications.
NKK_Custom_Printing_Services

View Parts for UB-Series

Printing Services Available
UB2-Series Low Profile Illuminated Pushbutton Switches
Low Profile Illuminated Pushbutton Switches
  • 5A Power Level & 0.4VA Logic Level; Snap-in and PCB Mount; Single and Bicolor LED Illumination; Sculptured, Beveled and Flat Cap Options; Alternating Legend Options; UL, cULus
  • Wide selection of illumination effects is achieved with single and bicolor LEDs, in flat, beveled, or sculptured caps. LED colors include red, amber, green, white, blue, and orange.
  • Non-illuminated models available.
  • Combination of PCB mountability and short body allows for use in compact applications.
NKK_Custom_Printing_Services

View Parts for UB2-Series

Printing Services Available
YB-Series Short Body Illuminated Pushbutton Switches
Short Body Illuminated Pushbutton Switches
  • 3A Power Level & 0.4VA Logic Level; Snap-in and Bushing Mount; Single and Bicolor LED Illumination; Square, Round and Rectangular Cap Options; IP65 Options, UL, CSA, cULus
  • Full face or spot illumination with incandescent lamps or multi-element LEDs, with or without resistors.
  • Choice of super-bright LEDs in white, green, and blue or bright red, amber, and green LEDs.
  • Non-illuminated models available.
NKK_Custom_Printing_Services

View Parts for YB-Series

Printing Services Available
YB2-Series Panel Seal Illuminated Pushbutton Switches
Panel Seal Illuminated Pushbuttons
  • 3A Power Level & 0.4VA Logic Level; Bushing Mount; LED Illumination; Full Face and Illuminated Ring Options, IP65, cULus
  • 24mm square and 25mm diameter pushbuttons with the shortest above-panel dimension (1.8mm) in the industry for splash-proof design.
  • Meets IP65 of IEC60529 standards (similar to NEMA 4 and 13), providing dust-tight and splash-proof panel seal protection.
  • Tamper-resistant 18mm square and 19mm diameter actuators.
NKK_Custom_Printing_Services

View Parts for YB2-Series

Panel Seal Pushbuttons

Panel Seal Pushbuttons

Download Specifications 3D CAD Model
MS-Series Miniature Illuminated Slide Switches
MS-Series Miniature Illuminated Slide Switches
  • Over-center actuator block and plunger design gives crisp actuation, diminishes sparking, and increases operating life.
  • Bright, LED illumination at top of actuator (for illuminated models). Anti-jamming design protects contacts from damage caused by excessive downward force on the actuator.
  • High internal barriers between poles, and insulating sheet between case and actuator block, give added protection to contacts.
  • Specially composed silver alloy contacts for power applications, or gold contacts for logic-level applications, give high contact reliability.
  • Prominent external insulating barriers increase insulation resistance and dielectric strength. Epoxy-sealed terminals prevent entry of flux, solvents, and other contaminants.
  • Clinching frame to case well above base and terminals provides 1500V dielectric strength. All models are certified by CSA and recognized by UL.

View Parts for MS-Series

Miniature Illuminated Slides

Miniature Illuminated Slides

Download Specifications 3D CAD Model
SS-Series Ultra-Miniature Illuminated Slide Switches
SS-Series Ultra-Miniature Illuminated Slide Switches
  • Top or side actuation permits flexible board design. Bright and uniform illumination in models with LED in actuator.
  • Compact dimensions and low profile allow for high-density mounting and close PCB stacking.
  • Crisp actuation positively indicates circuit status. Heat-resistant resin used for surface-mount models allows vapor-phase and infrared reflow soldering.
  • Double-molded thermoset base and thermoplastic housing for through-hole models prevent loosening of terminals caused by high soldering temperatures.
  • Sliding twin-contact mechanism with self-cleaning action provides smooth actuation and produces high contact reliability.
  • Insert-molded terminals lock out flux, solvents, and other contaminants. Inch or metric terminal spacing for standard PC board grid (.100" x .100" or 2.0mm x 2.0mm).

View Parts for SS-Series

Ultra-Miniature Illuminated Slide Switches

Ultra-Miniature Illuminated Slide Switches

Download Specifications 3D CAD Model
JB-Series Illuminated Low Profile Process Sealed Tactile Switches
JB-Series Illuminated Low Profile Process Sealed Tactile Switches
  • Illuminated Bright, full-face illumination with red, green, or yellow LEDs for attractive, functional panel layouts. Special bracket for right-angle mounting provides added design variations.
  • Choice of dimensions from PCB to top of cap adds to design flexibility. Higher operating force type provides more pronounced operating feel.
  • Dome contact gives crisp tactile feedback to positively indicate circuit transfer and assures high reliability and long life of up to 5,000,000 operations.
  • Rubber seal construction prevents contact contamination and allows automated soldering and washing. Slanted terminals provide a spring-type action which ensures secure mounting and prevents dislodgment during wave soldering.
  • Molded-in terminals are part of the sealed construction that allows automated soldering and washing. Terminal spacing conforms to standard 2.54mm PCB grid.


View Parts for JB-Series

Illuminated Low Profile Process Sealed Tactiles

Illuminated Low Profile Process Sealed Tactiles

Download Specifications 3D CAD Model
Legends

Legends

Download Specifications
JF-Series Illuminated Ultra-Thin Process Sealed Tactile Switches
JF-Series Illuminated Ultra-Thin Process Sealed Tactile Switches
  • Extremely low profile of 5mm from PCB to top of switch. Fully sealed contact mechanism permits wave soldering and washing.
  • Minimal operating force and short stroke permit light touch operation. Dome contact gives crisp tactile and audible feedback to positively indicate circuit transfer and assures high reliability and long life.
  • Wide choice of body shapes and colors. Crimped terminals provide a spring-type action to ensure secure mounting and prevent dislodging during wave soldering.
  • Space-saving body dimensions provide for compact, side-by-side mounting on a standard grid. Terminal spacing conforms to standard .100" PCB grid.

View Parts for JF-Series

Printing Services Available
JL-Series Illuminated Ultra-Thin Tactile Switches
JL-Series Illuminated Ultra-Thin Tactile Switches
  • Bright, full-face illumination with choice of red, green, or amber LEDs. Multiple LED arrays and interior reflectors enhance illumination of the large, .75" (19mm) square actuator surface.
  • Distinctive design allows full-face illumination in extra low profile of 0.31" (7.85mm) from PCB to top of switch. Dome contact gives crisp tactile and audible feedback with short stroke and assures high reliability and long life of 1,000,000 operations.
  • Crimped terminals provide a spring-type action to ensure secure mounting and prevent dislodgment during the soldering process.
  • Streamlined housing dimensions provide for compact, side-by-side mounting on a standard grid. Terminal spacing conforms to standard .100" (2.54mm) PCB grid.
NKK_Custom_Printing_Services

View Parts for JL-Series

Illuminated Ultra-Thin Tactiles

Illuminated Ultra-Thin Tactiles

Download Specifications
