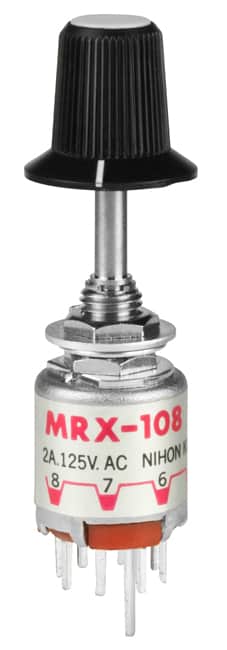

MRX108-BB

Miniature Power Level Rotaries

MR Series
Miniature Power Level Rotaries

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRX108-BB
Description
Miniature Power Level Rotaries
Name
Rotary
Series
MR
Poles
SP8T
no positions
2 ~ 8
index stops
Adjustable
no decks
1
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
2A (AC), 1A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Knob
actuator length
14.30mm
angle of throw
45°
contact material
Silver Alloy
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Sealed - Flux Protection
depth behind panel
27.30mm
Rating
2
