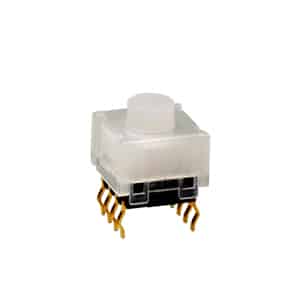

NP0115AG03LC

SWITCH PUSH SPST-NO 0.4VA 28V

NP01 Series
SWITCH PUSH SPST-NO 0.4VA 28V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
NP0115AG03LC
Description
SWITCH PUSH SPST-NO 0.4VA 28V
Name
Pushbutton
Series
NP01
Poles
SPST-NO
Circuits
Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Square, Button (Not Included)
illumination color
LED, Red
illumination voltage
2 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Rating
0.4
Illumination
Illuminated
