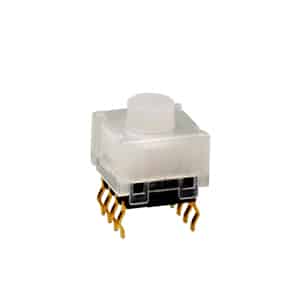

NP0115AG03LD

SWITCH PUSH SPST-NO 0.4VA 28V

NP01 Series
SWITCH PUSH SPST-NO 0.4VA 28V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
NP0115AG03LD
Description
SWITCH PUSH SPST-NO 0.4VA 28V
Name
Pushbutton
Series
NP01
Poles
SPST-NO
Circuits
Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Square, Button (Not Included)
illumination color
LED, Amber
illumination voltage
2.1 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Rating
0.4
Illumination
Illuminated
