The Ultra-Miniature Guide is a visual reference that is organized by actuation type, including ultra-miniature toggles, rockers, pushbuttons, rotaries, paddles, slides, and tactiles for high density interface design.

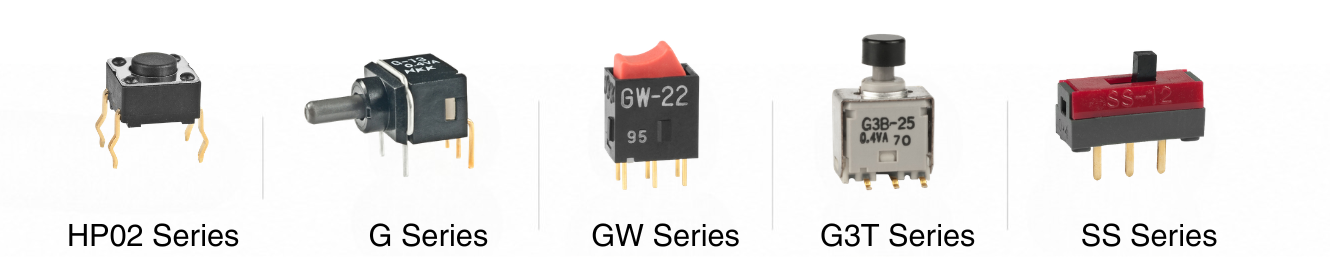

G Series toggles, G3T SMT Toggles, G3B SMT pushbuttons, and GW Series rockers support high density PCB and panel designs with ultra-compact dimensions, process sealed construction, and multiple PCB mounting configurations. Integrated illumination options add status indication without increasing interface size.

Beyond primary interface controls, ultra-miniature rotary, DIP slide, and tactile switch families further support compact configuration and control requirements across space-constrained systems.

Together, these families provide multiple approaches for solving compact interface and control challenges within dense electronic systems.

Sealed switch options span toggles, rockers, pushbuttons, programmables, rotaries, and emergency stop devices for systems exposed to moisture, dust, washdowns, temperature variation, and harsh operating conditions.

Notable sealed solutions include the M Series and the S Series toggle configurations with splashproof boots, panel seal construction, and dual seal designs supporting IP rated protection up to IP68 at the front panel. M Series and the JW Series and WR Series rockers extend IP rated protection across exposed panel environments.

Panel seal construction, environmentally sealed designs, splashproof boots, and ingress protection ratings from IP50 through IP68 provide interface-level protection.

Protection can be further extended through panel seal boots, protective covers, guards, and the SmartDisplay™ splashproof overlay.

Together, these sealing approaches support protected interface design across exposed operating environments.

The IP Rated Products Guide organizes sealed toggle, rocker, pushbutton, programmable, rotary, and emergency stop solutions by IP protection level, highlighting environmental sealing methods, front and back panel ratings, and accessory systems including splashproof boots, overlays, guards, and covers for harsh operating environments.

Industrial switch families are designed to support electrical load requirements across systems involving power cycling, inrush current, motor loads, and extended duty cycles.

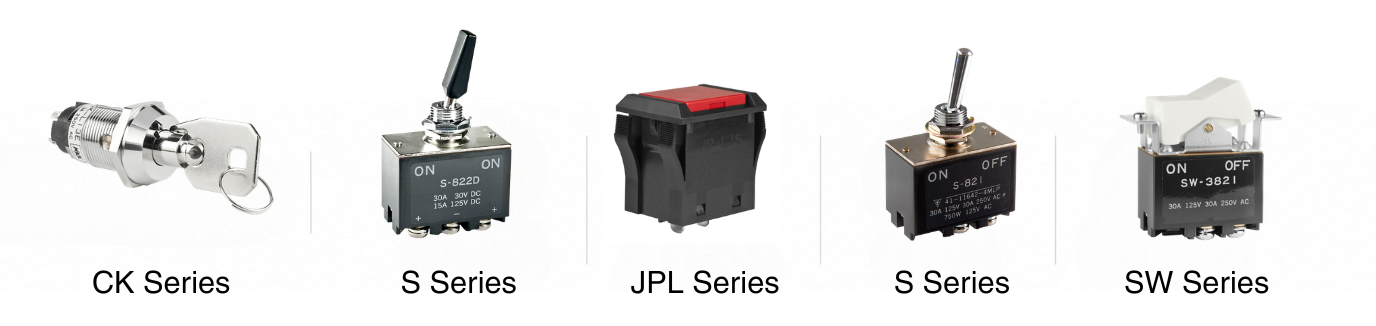

Notable solutions include the S Series and the WT Series toggles, along with WR and select JW Series rockers supporting medium, high capacity, and DC load switching requirements across industrial environments.

With ratings ranging from 3A to 30A, these families incorporate contact materials and internal construction engineered to maintain reliable operation under demanding electrical conditions.

Together, these switch families provide multiple approaches for managing demanding power switching conditions across industrial control applications.

The Switches for Tough Environments Brochure organizes industrial and IP rated toggle, rocker, pushbutton, keylock, rotary, touchscreen, and programmable switch families by environmental protection level, electrical capacity, mounting style, and operating conditions, while also detailing protective accessories, sealing boots, guards, covers, and value added assembly capabilities for harsh industrial environments.
