M Series: Miniature Toggles, Pushbuttons, Rockers and Slides
November 2024
Miniature Switch Architecture for Scalable Panel and PCB Integration
A unified mechanical and electrical platform across toggle, pushbutton, rocker, and slide configurations.
NKK’s M Series is a family of miniature switches designed to support both panel mounting and PCB integration, depending on the model and configuration. Across toggles, pushbuttons, rockers, and slides, the M series emphasizes construction features that protect contact alignment, resist jamming, improve circuit isolation in multipole devices, and reduce contamination risk, while offering contact options for both power level and logic level switching. The series includes illuminated and water-resistant or waterproof variants where specified.
Across many M series configurations, mounting and layout conventions are coordinated; where footprints and terminal patterns align by model, engineers can simplify integration.
Evaluate and specify miniature switching solutions:
Not sure which M Series or control interface is appropriate for your architecture? Contact an NKK applications engineer.

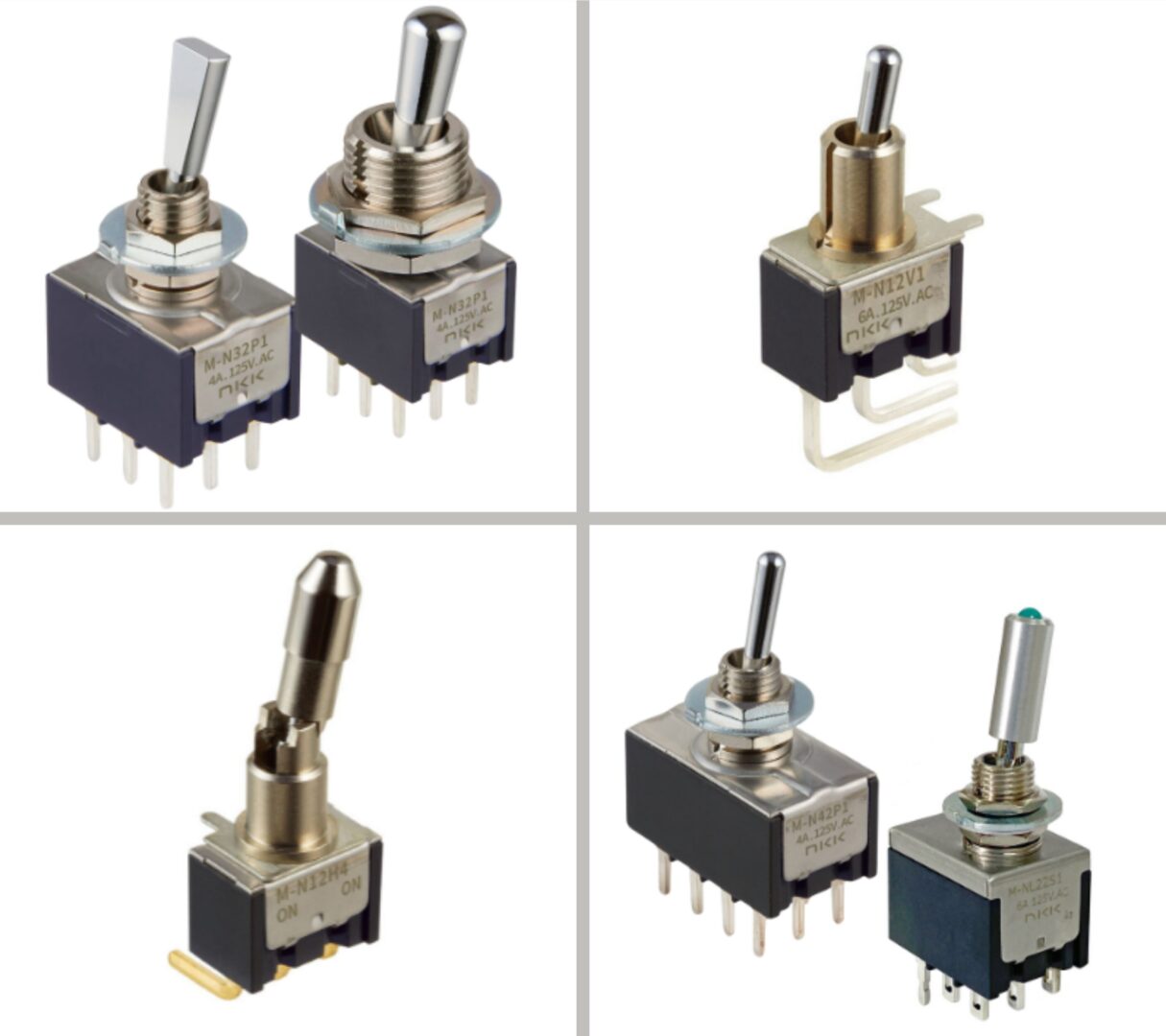

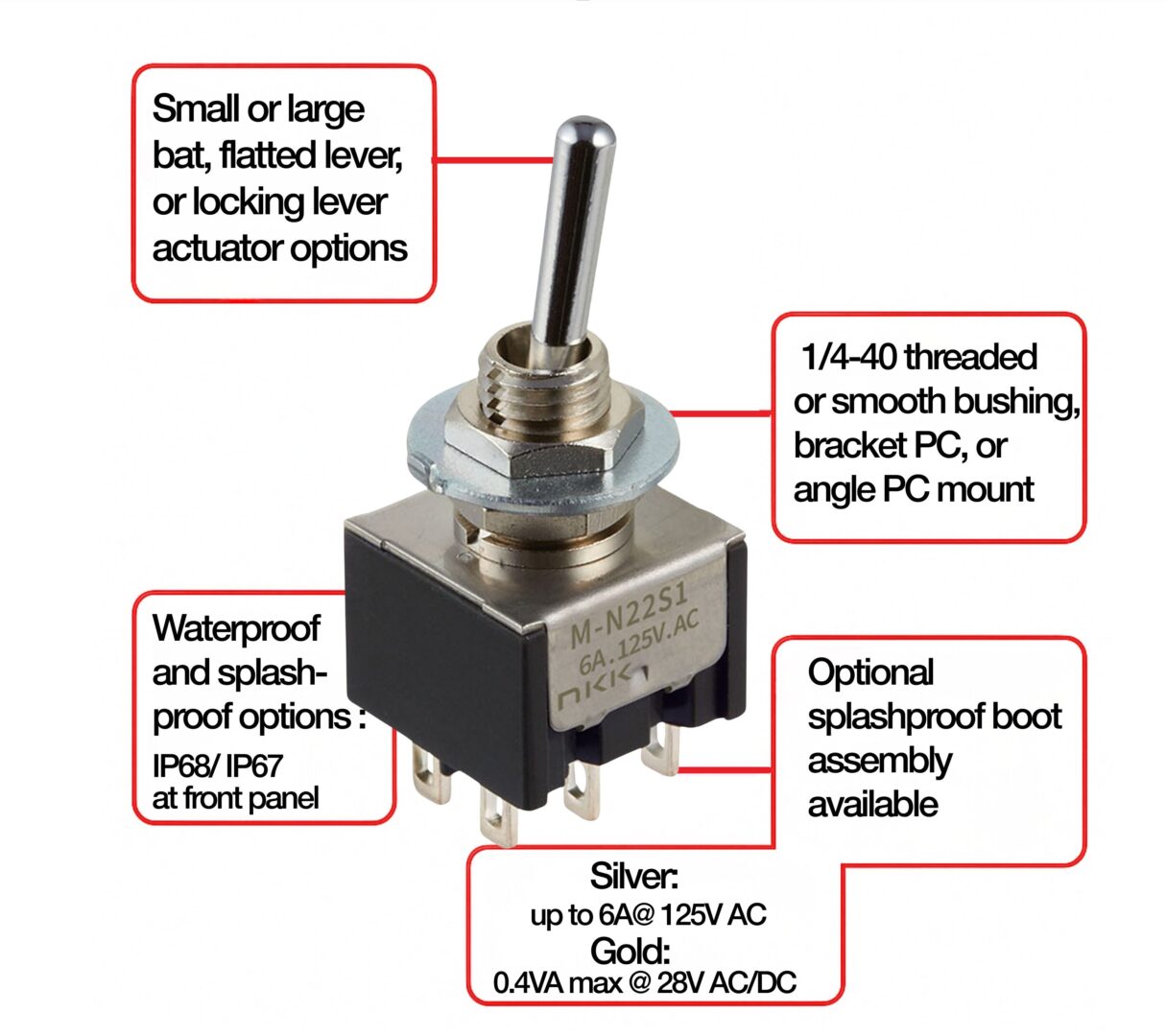

NKK’s M Series miniature toggles provide compact switching across a broad range of poles and circuits, with contact options suited to both power and logic level designs. Multiple mounting configurations support varied mechanical and packaging requirements, including bushing mount for panel builds, bracket PC mount, and angle PC mount for tighter PCB layouts.
The series also includes an IP68-rated dual seal waterproof miniature toggle.
For applications that need added water resistance without full waterproof construction, an optional splashboot is available.
The series is described as having a smooth, sturdy tactile feel.
- Bushing Mount
- Bracket PC Mount
- Angle PC Mount
- SPST/SPDT
- DPST/DPST/SP3T
- 3PDT
- 4PDT/DP3T
- Wide range of position combinations, including momentary schemes
- Note: ON-NONE-OFF is available in 1- and 2-pole only
- Interlocked actuator components prevent lever bias
- Contacts protection against excessive downward actuator force
- High torque bushing resists rotation and separation during installation
- Epoxy sealed terminals
- Patented silver alloy contacts improve wear and arc resistance
- Model ranges up to 6A @ 125V and up to 3A @ 250V AC
- 0.4VA max @ 28V AC/DC max
- Dual rated available as a custom option
- Suitable when two or more identical switches are used in logic and power circuits in same application
- Provide increased isolation in multipole devices
- Add protection to contact points
- Increase resistance and dielectric strength
- Small or large toggles
- Bat, flattened, or locking lever
- Optional caps for small, large bat toggles, and locking lever
- Optional splashproof boots
- Various optional nuts and ON-OFF plates available
View the parts & datasheet for NKK’s M Series miniature toggles.
View the parts & datasheet for NKK’s M Series dual seal waterproof toggles.
M Series Miniature Toggles

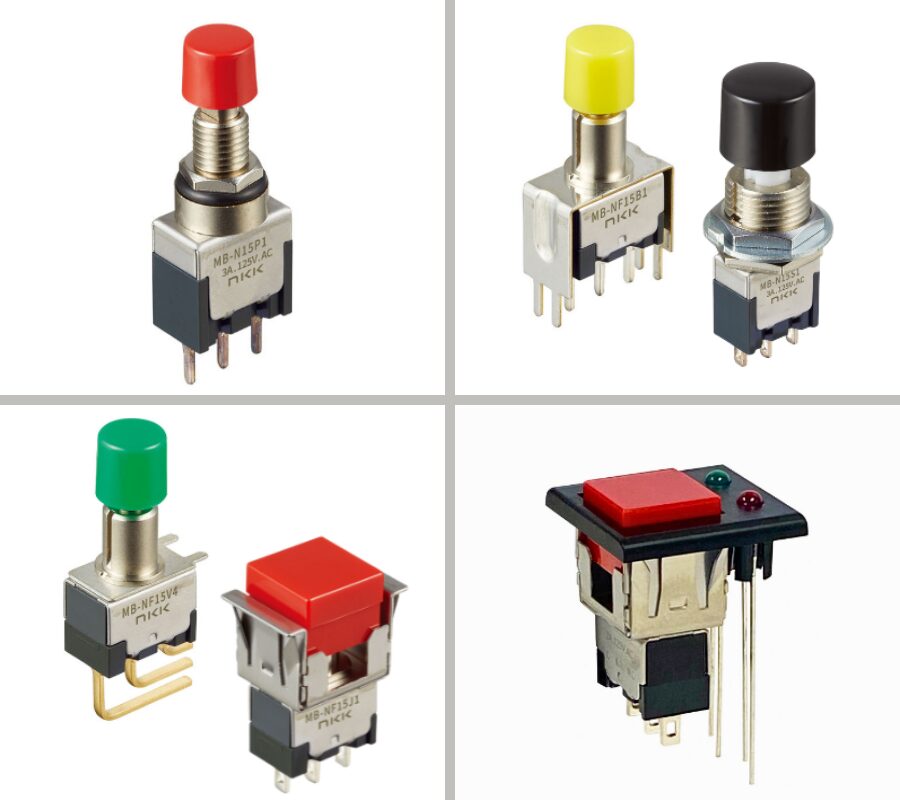

NKK’s M Series pushbuttons are miniature operator-interface switches engineered for tactile clarity and contact stability, with mounting and termination options that support both panel builds and PCB-based assemblies.
M Series MBN is offered in bushing mount and bracket PC mount styles (including a large bushing option).
M Series MBNR and MBNF use a snap-action mechanism for smooth actuation with short stroke, light touch, and audible feedback. They are distinguished by bushing thread: MBNR uses 1/4-40, and MBNF uses M6 × 0.75.
- Bushing Mount
- Bracket PC Mount
- Large Bushing Mount
- Bushing Mount
- Bracket PC Mount
- Snap-in Mount
- SPDT or DPDT
- ON-ON or ON-(ON)
- SPDT or DPDT
- ON-(ON)

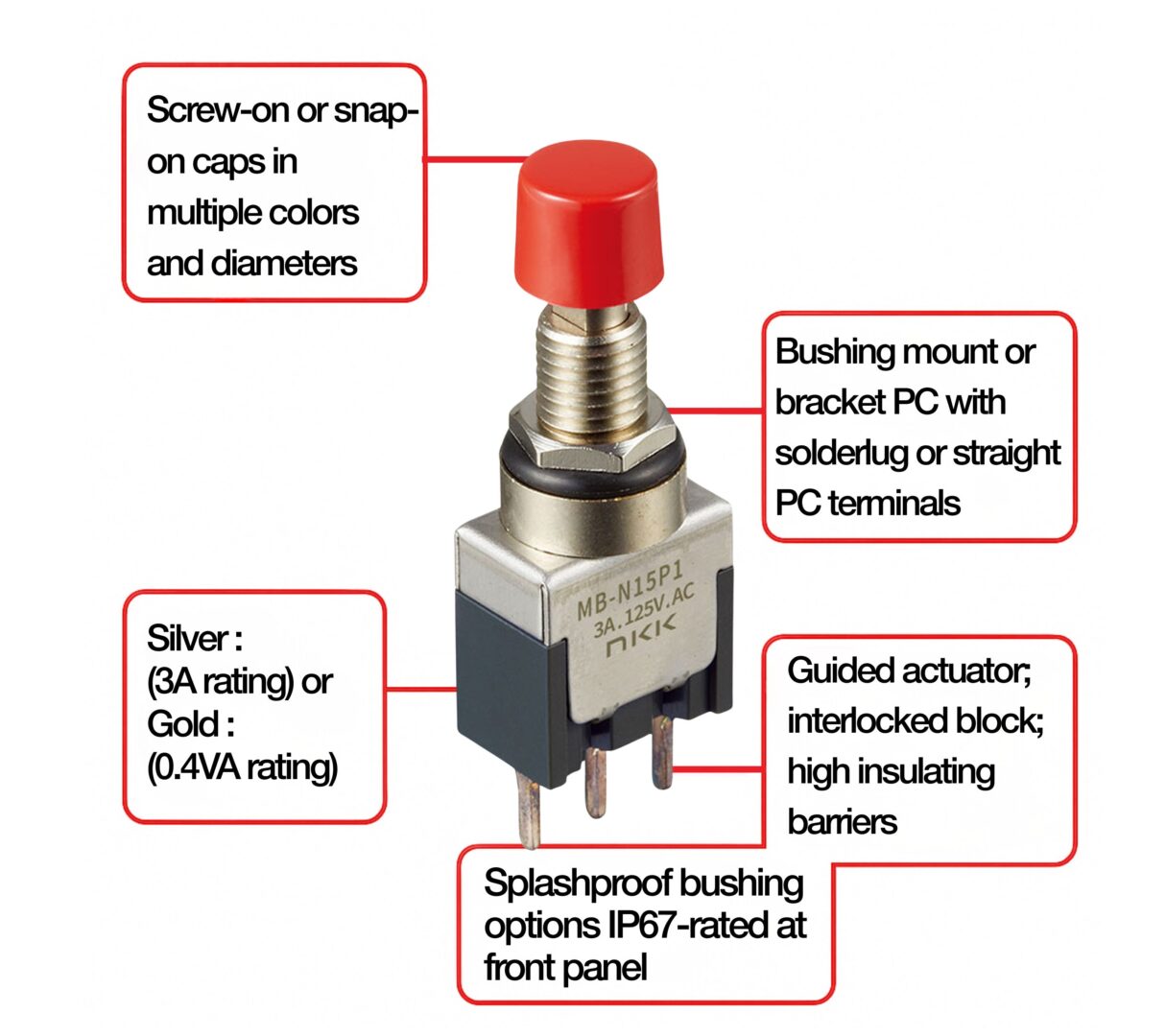

- Guide interlocked with actuator block prevents window locking and maintains correct plunger alignment
- Over-center actuator mechanism diminishes sparking and increases life in AC circuits
- High torque bushing construction prevents rotation or separation from frame during installation
- High torque bushing prevents rotation and separation from the frame during installation
- Antijamming design protects contacts from damage due to excessive downward force on the actuator
- Stainless steel frame resists corrosion
- Silver contacts of specially composed alloy for hardness
- Silver rated 3A @ 125V AC and 2A @ 250V AC
- Gold rated 0.4VA max @ 28V AC/DC
- Silver rated 2A @ 125V AC
- Gold rated 0.4VA max @ 28V AC/DC
- High insulating barriers increase isolation of circuits in multipole devices
- Prominent external insulating barriers increase insulation resistance and dielectric strength
- IP67-rated splashproof option with O-ring sealing within the bushing and another under the face nut
- Plunger styles support screw-on or snap-on caps
- Optional hardware includes locking rings, mounting collars/conical nuts, and splashproof boots
- Screw-on or snap-on cap styles
- Accessory options include splashboots, mounting collars, conical nuts, and locking rings; offered in inch or metric
- Custom legends can be applied via NKK’s value-added service; screen or pad print is recommended
- Smaller diameter cap sizes: Ø 0.201″ 5.1mm or Ø 0.295″ 7.5mm
- Plunger can be used with or without a cap for this model
- Snap-in model employs a square cap and offers an optional bezel with or without LED indicators
- The MBNR variant is specified for inch-threaded panel designs (1/4-40).
- Larger-diameter cap options: Ø 0.315″ 8.0mm or Ø 0.394″ 10.0mm
- Snap-in model employs a square cap and offers an optional bezel with or without LED indicators
- Custom legends can be applied via NKK’s value-added service; screen or pad print is recommended
- The MBNF variant is specified for metric-threaded panel designs (M6 × 0.75).
View the parts & datasheet for NKK’s M Series MBN miniature pushbuttons
View the parts & datasheet for NKK’s M Series MBNR miniature pushbuttons
View the parts & datasheet for NKK’s M Series MBNF miniature pushbuttons
M Series Miniature Pushbuttons

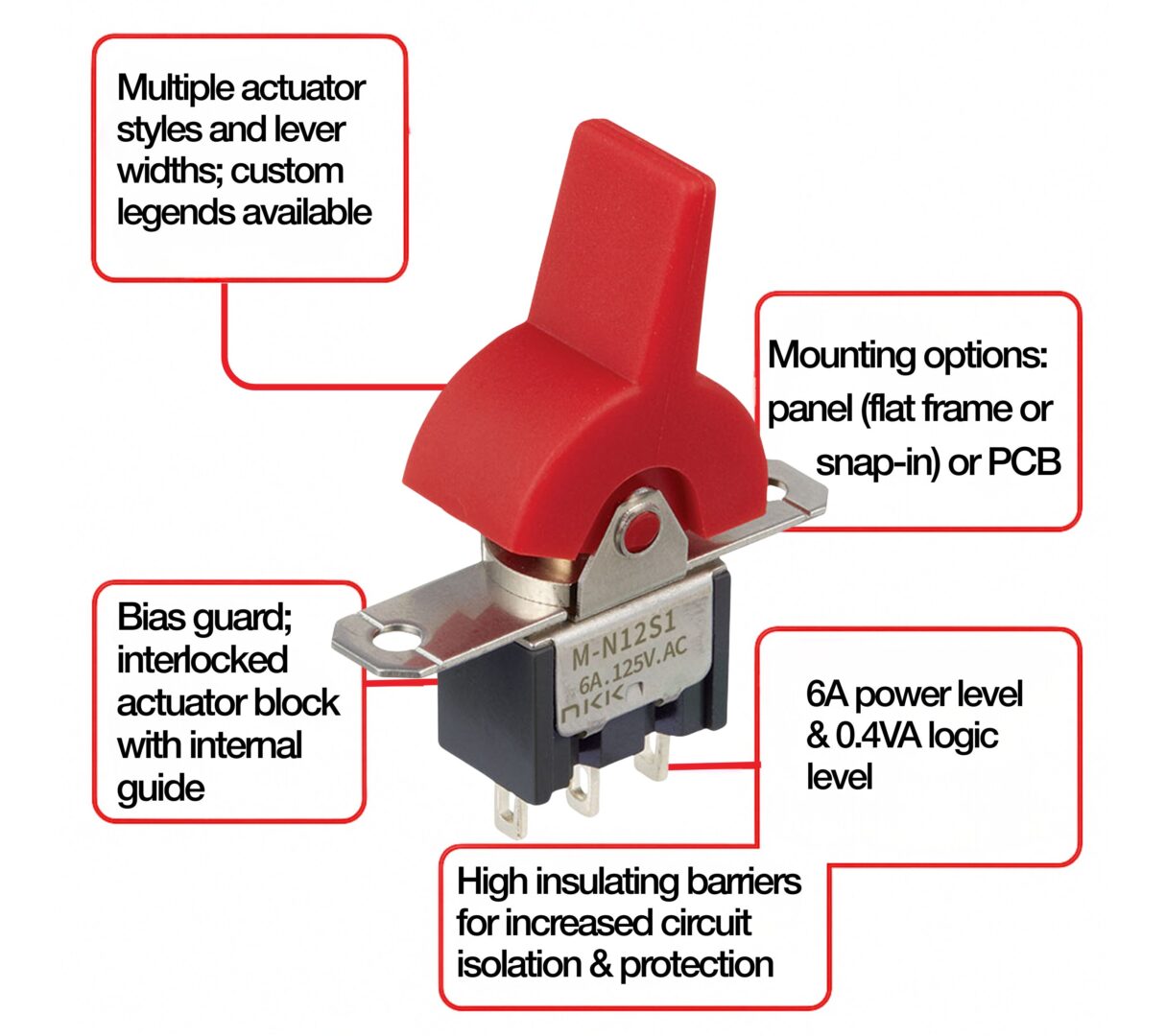

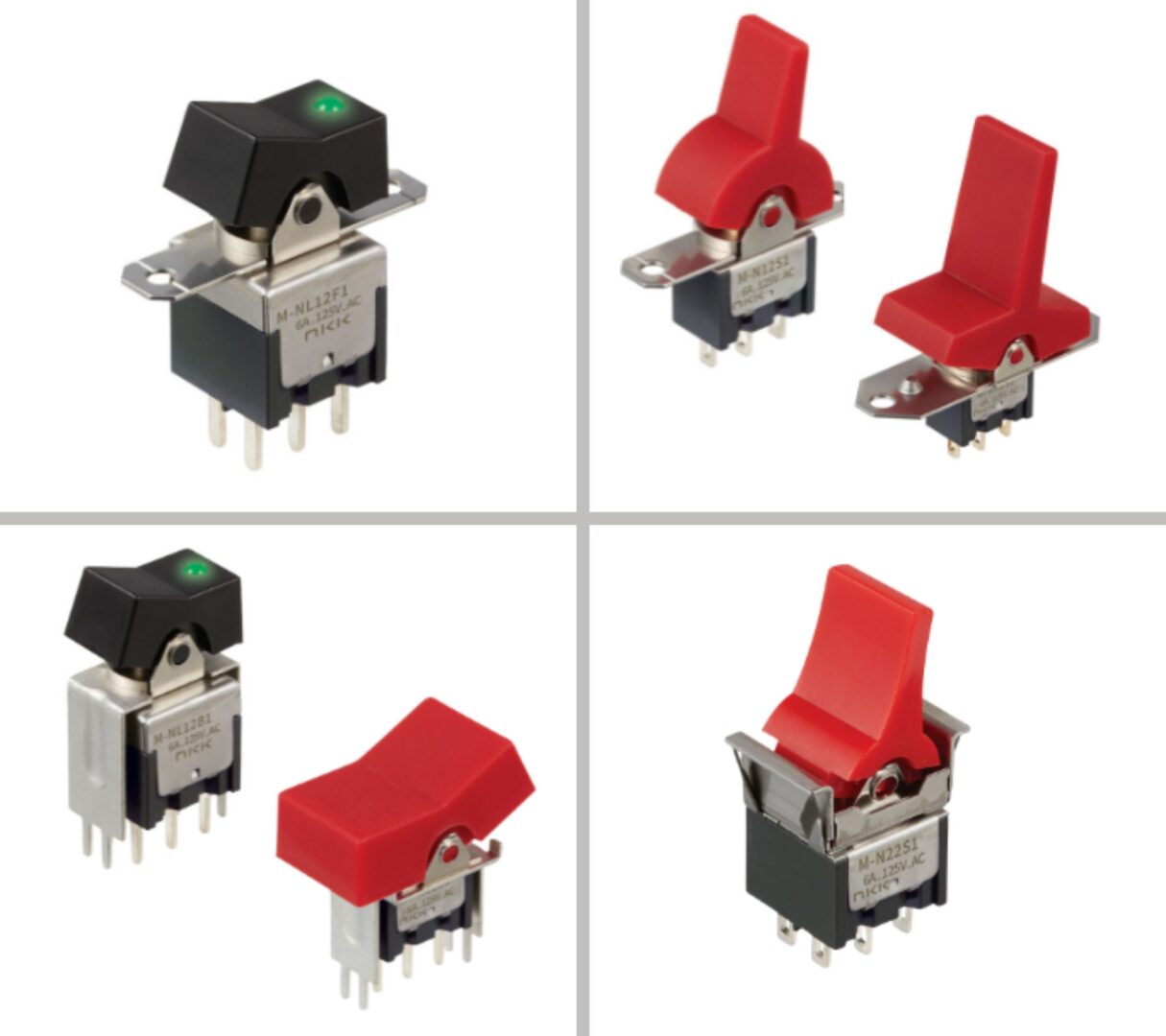

The M Series delivers miniature rocker switching with broad configuration flexibility spanning power level load control through logic level signal switching, while supporting multiple mounting styles and design features that improve isolation and robustness in multipole assemblies.
- Snap-in Mount
- Bracket PC Mount
- Flat Frame Mount
- Supports SPDT, DPDT, and SP3T
- Momentary & maintained options
- Multiple 3-ON variants
- Includes a 3PDT option for use with narrow mounting frame
- ON-(ON) circuitry
- Bias guard prevents misalignment of contacts
- Interlocked actuator block with rocker limits diagonal force to contacts
- Rated 6A @ 125V AC or 3A @ 250V AC
- Gold rated 0.4VA max @ 28V AC/DC
- Gold over silver is recommended for applications that use two or more identical switches in the same application
- Available as a custom option
- High insulating barriers increase isolation of circuits in multipole devices
- Snap-in bezel options are available with or without LED indicators
- Custom caps legends are offered in pad print, laser etch, or screen print
View the parts & datasheet for NKK’s M Series miniature rockers
M Series Miniature Rockers

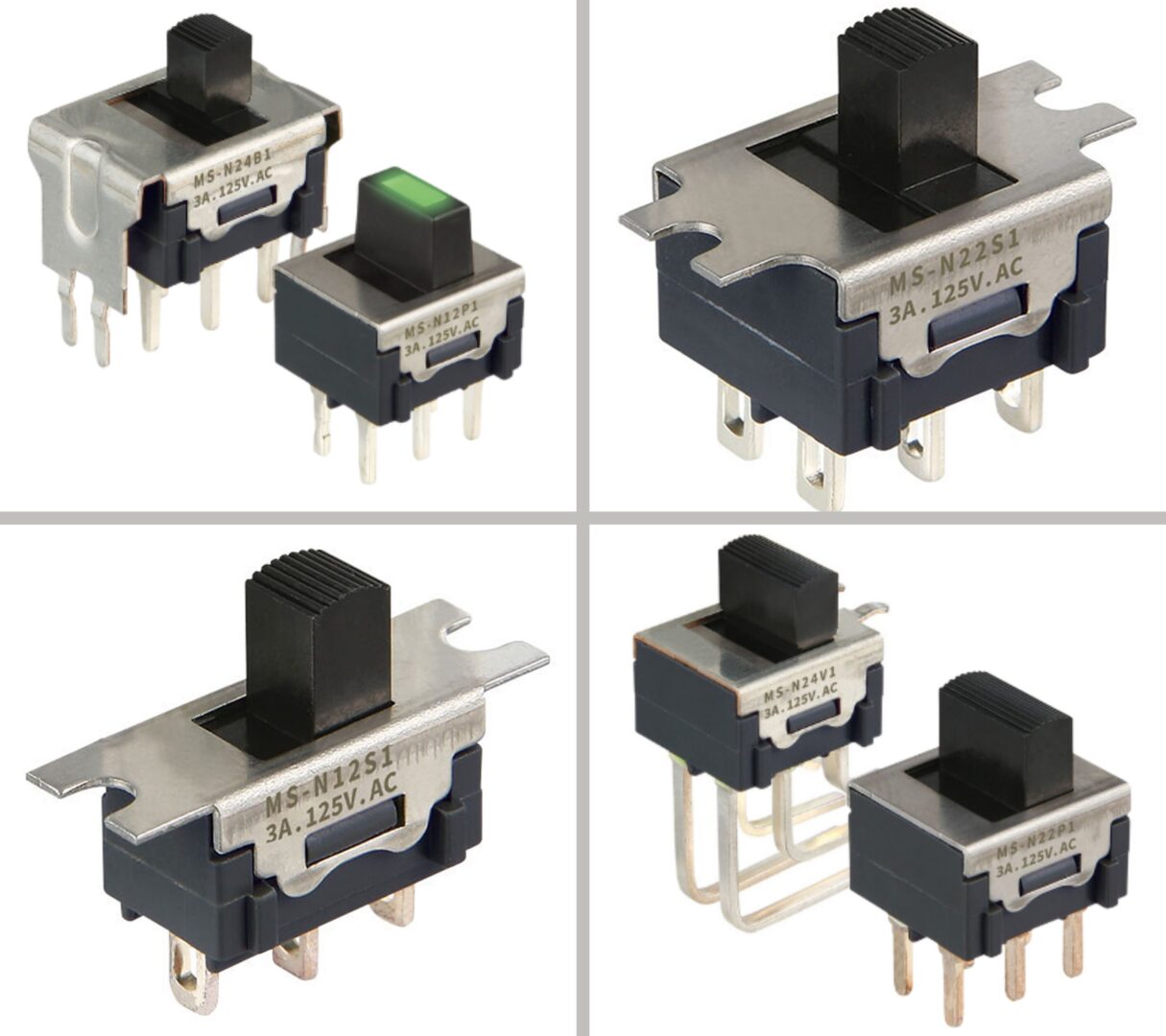

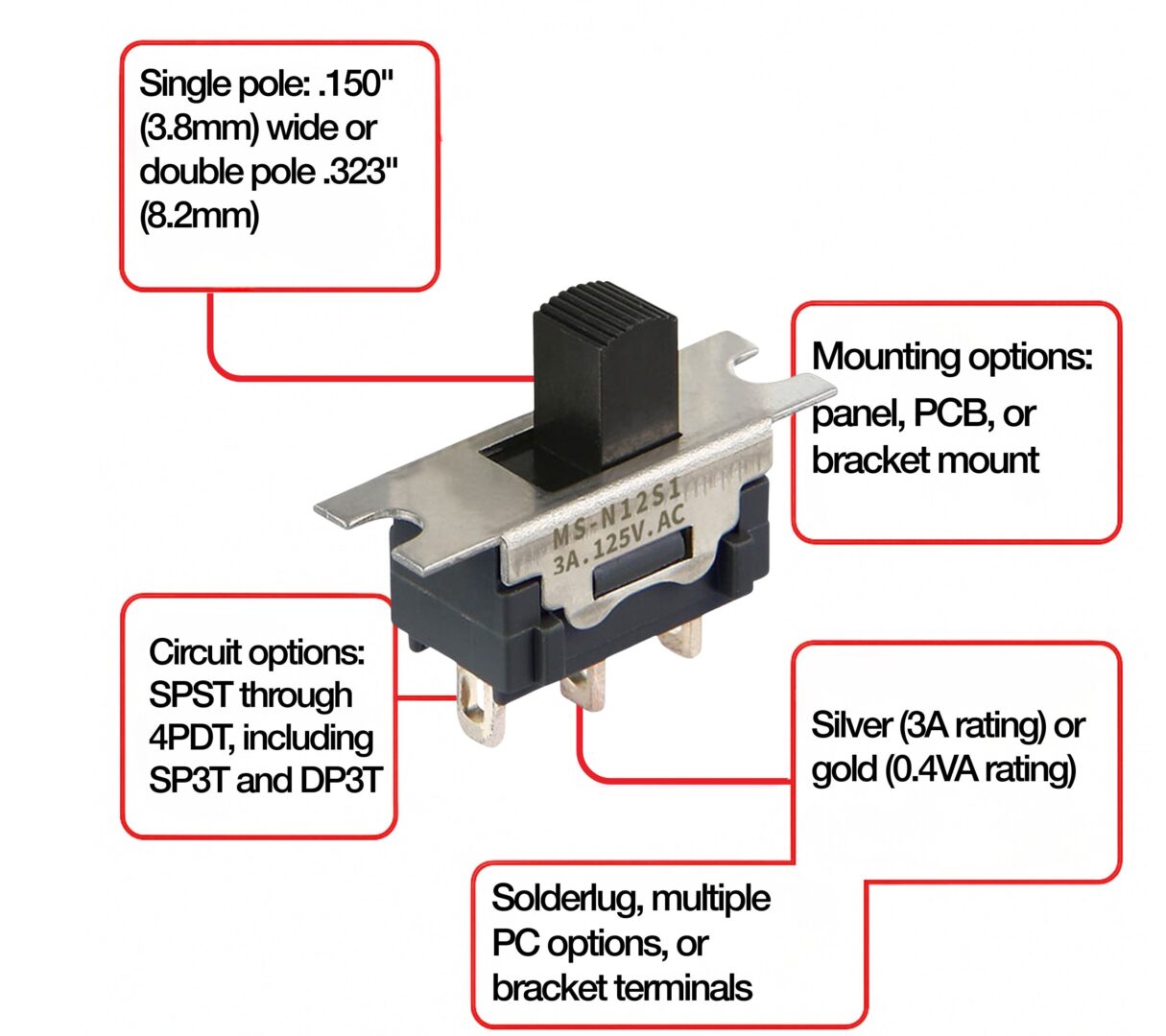

NKK’s M Series Miniature Slides use an over-center actuator block and plunger design to deliver crisp actuation with clear circuit-status indication, while diminishing sparking and supporting a longer operating life, with contact options rated for power level and logic level switching.
- Panel Mount
- PCB Mount
- Bracket Mount
- Supports SPDT, DPDT, and SP3T
- Momentary & maintained options
- Multiple 3-ON variants
- Includes a 3PDT option for use with narrow mounting frame
- ON-(ON) circuitry
- Bias guard prevents misalignment of contacts
- Interlocked actuator block with rocker limits diagonal force to contacts
- Rated 6A @ 125V AC or 3A @ 250V AC
- Gold rated 0.4VA max @ 28V AC/DC
- Gold over silver is recommended for applications that use two or more identical switches in the same application
- Available as a custom option
- High insulating barriers increase isolation of circuits in multipole devices
- Snap-in bezel options are available with or without LED indicators
- Custom caps legends are offered in pad print, laser etch, or screen print
View the parts & datasheet for NKK’s M Series miniature slides
M Series Miniature Slides
