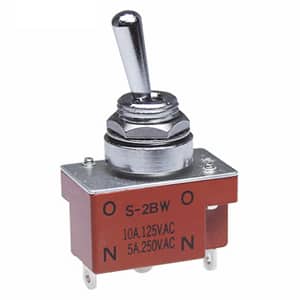

S2BW

SWITCH TOGGLE SPDT 5A 125V

S Series
SWITCH TOGGLE SPDT 5A 125V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
S2BW
Description
SWITCH TOGGLE SPDT 5A 125V
Name
Toggle
Series
S
Poles
SPDT
Circuits
On-On
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP67 - Dust Tight, Waterproof
Rating
5
