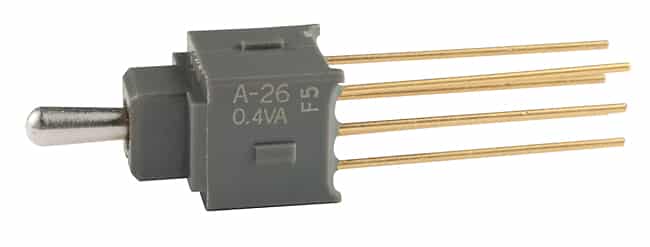

A26JW

Process Sealed Subminiature Toggles

A Series
Process Sealed Subminiature Toggles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
A26JW
Description
Process Sealed Subminiature Toggles
Name
Toggle
Series
A
Poles
SP3T
Circuits
Mom-On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
6.30mm
Illumination
Non-Illuminated
Mounting Type
Through Hole
Termination Style
Wire Wrap
bushing thread
Unthreaded, Square
Features
Jumper needed to achieve triple throw
Rating
0.4
