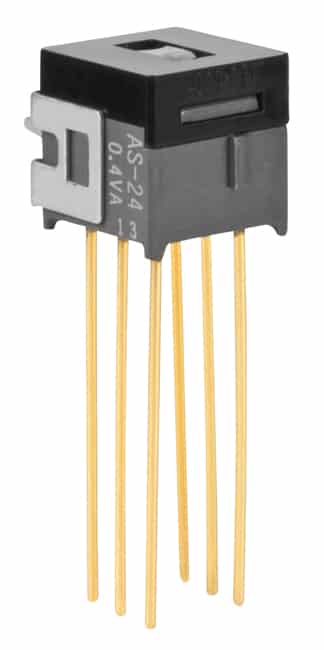

AS24BV

Subminiature Slides

AS Series
Subminiature Slides

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
AS24BV
Description
Subminiature Slides
Name
Slide
Series
AS
part status
Active
Poles
SP3T
contact timing
Non-Shorting (BBM)
Circuits
On-On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flush
actuator length
Flush
contact material
Phosphor Bronze
contact finish
Gold
Mounting Type
Through Hole, Right Angle, Vertical
Termination Style
PC Pin
Features
Jumper needed to achieve triple throw
Rating
0.4
