General Specifications
Part No.

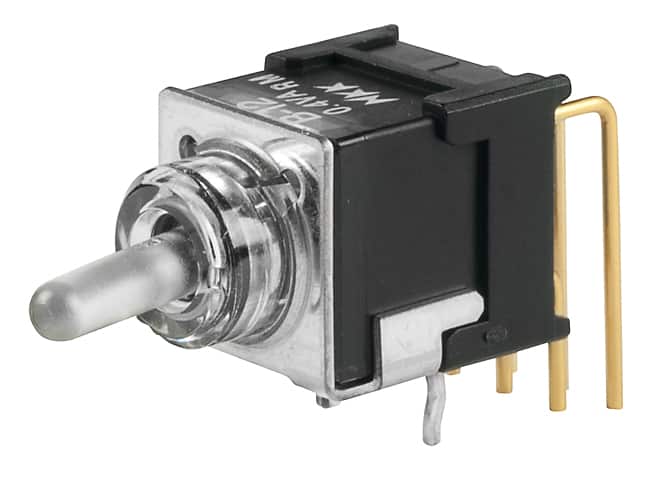

B12JJHCF
Description
Subminiature Fully Illuminated Toggles
Name
Toggle
Series
B
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
6.30mm
Illumination
Illuminated
illumination type color
LED, Red/Green
illumination voltage nominal
1.95, 3.3 VDC
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
0.4
