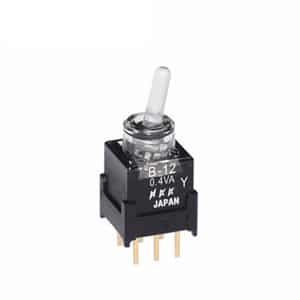

B12JJPD

Subminiature Fully Illuminated Toggles

B Series
Subminiature Fully Illuminated Toggles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
B12JJPD
Description
Subminiature Fully Illuminated Toggles
Name
Toggle
Series
B
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
6.30mm
Illumination
Illuminated
illumination type color
LED, Amber
illumination voltage nominal
2 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
0.4
