General Specifications
Part No.
CKL12AFW01-002
Description

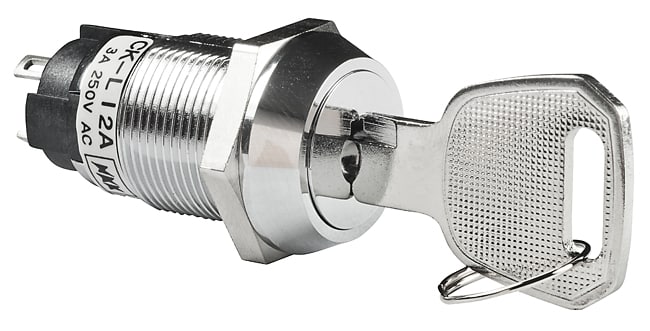

SWITCH KEYLOCK 2POS SPDT 3A 250V
Name
KEYLOCK
Series
CK
Poles
SPDT
no positions
2
Circuits
On-On
contact timing
Non-Shorting (BBM)
Current Rating
3A (AC)
Rating (AC)
250V
Actuator Type
Flat Key
key removable positions
All
angle throw
90°
contact material
Silver (Ag)
contact finish
Silver
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 19.00mm Dia
Features
Epoxy Sealed Terminals
Rating
3
