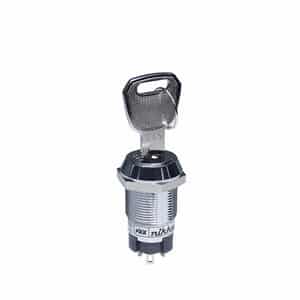

CKL13EFW01

High Security Keylocks

CK Series
High Security Keylocks

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
CKL13EFW01
Description
High Security Keylocks
Name
KEYLOCK
Series
CK
Poles
SPDT
no positions
3
Circuits
On-Off-On
contact timing
Non-Shorting (BBM)
Current Rating
3A (AC)
Rating (AC)
250V
Actuator Type
Flat Key
key removable positions
2 only
angle throw
45°
contact material
Silver (Ag)
contact finish
Silver
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 19.00mm Dia
Features
Epoxy Sealed Terminals
Rating
3
