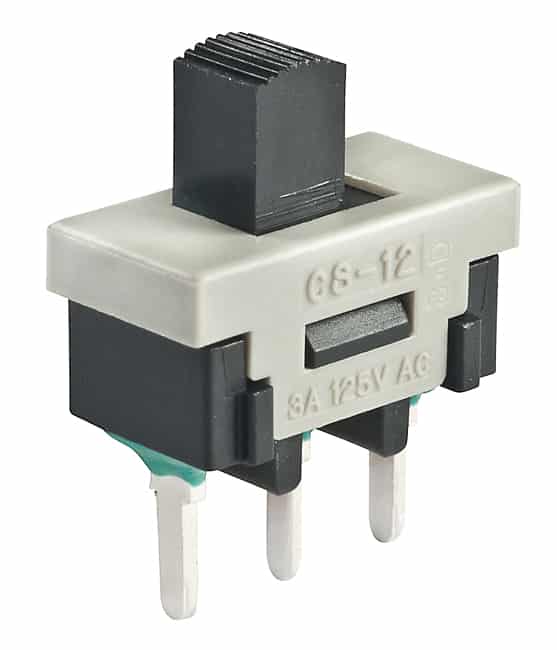

CS12ANW03

Miniature Power Rated Slides

CS Series
Miniature Power Rated Slides

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
CS12ANW03
Description
Miniature Power Rated Slides
Name
Slide
Series
CS
part status
Active
Poles
SPDT
contact timing
Non-Shorting (BBM)
Circuits
On-On
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Standard
actuator length
5.10mm
contact material
Copper
contact finish
Silver
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
3
