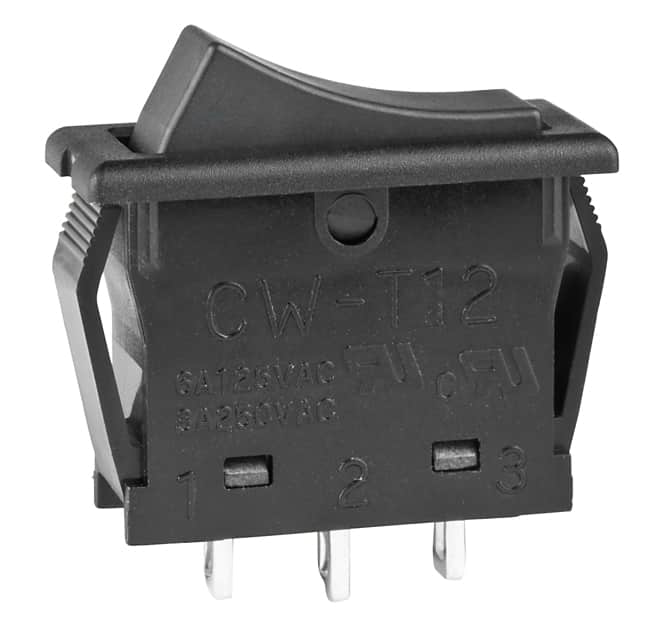

CWT12AAS1

Miniature Power Rockers

CW Series
Miniature Power Rockers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
CWT12AAS1
Description
Miniature Power Rockers
Name
Rocker
Series
CW
Status
Active
Poles
SPDT
Circuits
On-On
Current Rating
6A (AC), 4A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Concave (Curved)
Actuator Cap Color
Black
Actuator Marking
No Marking
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
ingress protection
Dust Proof
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 19.20mm x 6.80mm
Rating
6
Illumination
Non-Illuminated
