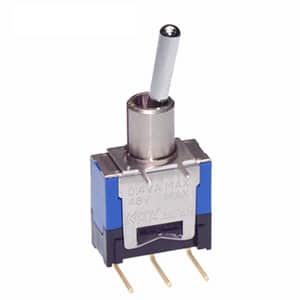

D22018H

PCB Mount Miniature Toggles

D2 Series
PCB Mount Miniature Toggles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
D22018H
Description
PCB Mount Miniature Toggles
Name
Toggle
Series
D2
Poles
SPDT
Circuits
Mom-Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
48V
Rating (DC)
48V
Actuator Type
Standard Round
actuator length
10.50mm
Illumination
Non-Illuminated
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
bushing thread
Unthreaded
Rating
0.4
