Product Change NoticesGeneral Specifications
Part No.

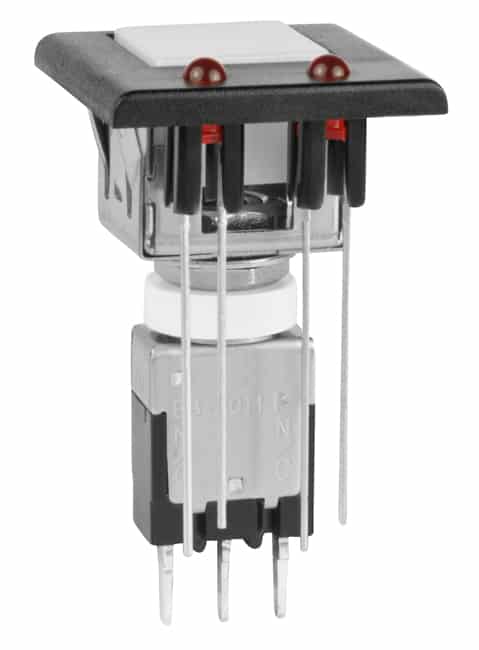

EB2011P-B-J23ACC
Description
Light Touch Miniature Pushbuttons
Name
Pushbutton
Series
EB
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Square, Button
Actuator Cap Color
White
illumination color
LED, Red/Red
illumination voltage
2 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 18.40mm x 15.00mm
Rating
3
Illumination
Illuminated
