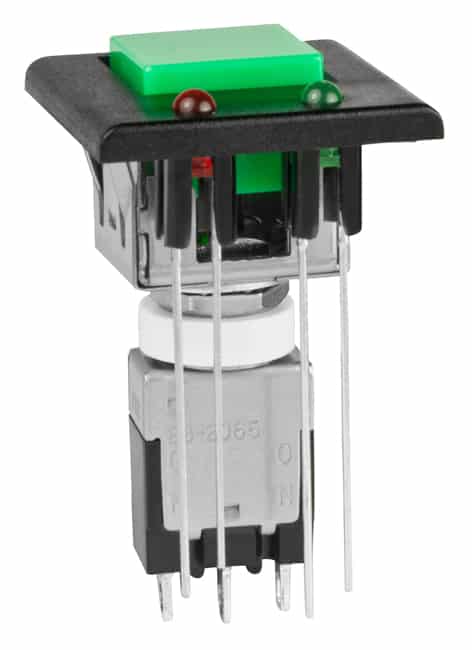

EB2065-F-J33ACF

Light Touch Miniature Pushbuttons

EB Series
Light Touch Miniature Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
EB2065-F-J33ACF
Description
Light Touch Miniature Pushbuttons
Name
Pushbutton
Series
EB
Poles
SPDT
Circuits
On-On
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Square, Button
Actuator Cap Color
Green
illumination color
LED, Red/Green
illumination voltage
2.0, 2.25 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 18.40mm x 15.00mm
Rating
3
Illumination
Illuminated
