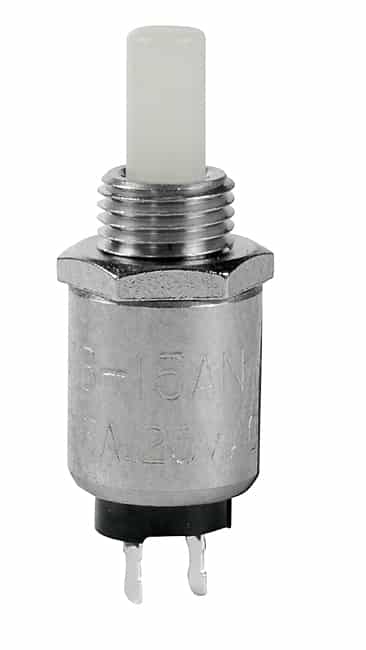

FB15ANEP2

.5 AMP Momentary Pushbuttons

FB Series
.5 AMP Momentary Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
FB15ANEP2
Description
.5 AMP Momentary Pushbuttons
Name
Pushbutton
Series
FB
Poles
SPST-NO
Circuits
Off-Mom
Current Rating
500mA (AC)
Rating (AC)
125V
Actuator Type
Plunger for Cap
Actuator Cap Color
White
Mounting Type
Panel Mount, Rear
Termination Style
Solder Turret
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 5.30mm Dia
Rating
0.4
Illumination
Non-Illuminated
