Part No.
FMBN16BD
Description

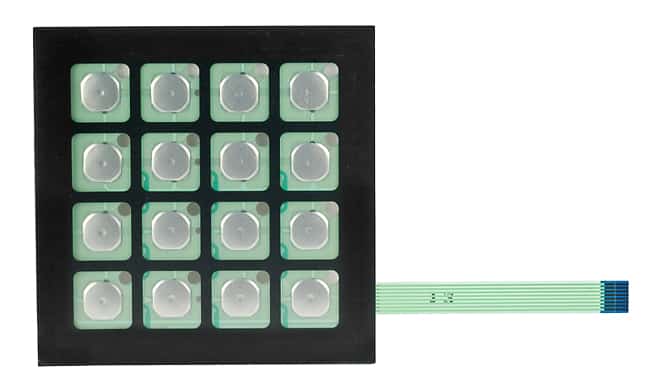

Membrane Keypad
Name
Membrane Keypad
Series
FM
switch type
Membrane (Snap Dome)
no keys
16
matrix
4 x 4
Illumination
Non-Illuminated
legend type
Interchangeable
key type
Polyester Overlay
Output Type
Matrix
legend
Customizable (Included)
key color
Transparent
Mounting Type
Panel Mount, Front
Termination Style
Cable with Connector
Operating Temperature
-15°C ~ 55°C
Contact Rating
0.02A @ 24VDC
