General Specifications
Part No.
FR01KC10H-06XL-S
Description

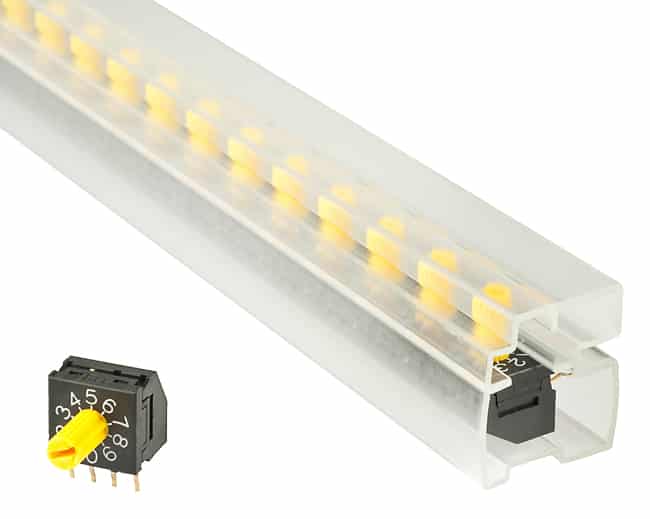

SW ROTARY DIP BCD COMP 100MA 5V
Name
DIP
Packaging
Tube
Series
FR01
Poles
BCD Complement
no positions
10
Current Rating
100mA
Voltage Rating
5VDC
Actuator Type
Rotary with Shaft
actuator level
Raised
contact material
Copper Alloy
contact finish
Gold
height above board
0.394" (10.00mm)
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
pitch
0.100" (2.54mm), Full
washable
No
Rating
0.1
