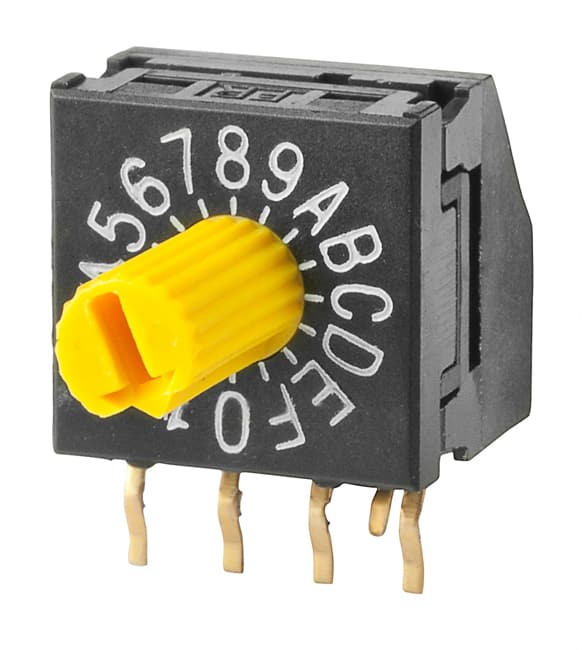

FR01KC16H

SW ROTARY DIP HEX COMP 100MA 5V

FR01 Series
SW ROTARY DIP HEX COMP 100MA 5V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
FR01KC16H
Description
SW ROTARY DIP HEX COMP 100MA 5V
Name
DIP
Packaging
Bulk
Series
FR01
Poles
Hexadecimal Complement
no positions
16
Current Rating
100mA
Voltage Rating
5VDC
Actuator Type
Rotary with Shaft
actuator level
Raised
contact material
Copper Alloy
contact finish
Gold
height above board
0.394" (10.00mm)
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
pitch
0.100" (2.54mm), Full
washable
No
Rating
0.1
