General Specifications
Part No.

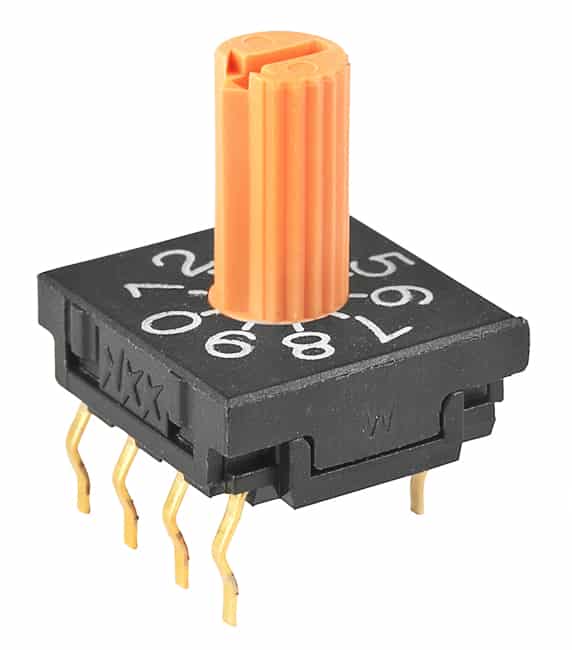

FR01KR10P-W
Description
SWITCH ROTARY DIP BCD 100MA 5V
Name
DIP
Packaging
Bulk
Series
FR01
Poles
BCD
no positions
10
Current Rating
100mA
Voltage Rating
5VDC
Actuator Type
Rotary with Shaft
actuator level
Raised
contact material
Copper Alloy
contact finish
Gold
height above board
0.426" (10.82mm)
Mounting Type
Through Hole
Termination Style
PC Pin
pitch
0.100" (2.54mm), Full
washable
Yes
Rating
0.1
