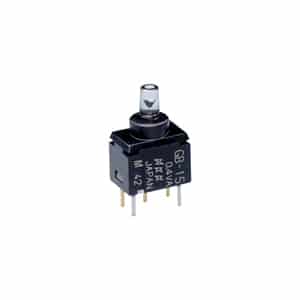

GB15JPF

Ultra-Miniature Fully Illuminated Plungers

GB Series
Ultra-Miniature Fully Illuminated Plungers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
GB15JPF
Description
Ultra-Miniature Fully Illuminated Plungers
Name
Pushbutton
Series
GB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Round, Plunger
Actuator Cap Color
Clear
illumination color
LED, Green
illumination voltage
2.1 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Rating
0.4
Illumination
Illuminated
