HB02KW01-6B-DB

SW IND PB RND WHITE LED DIFF AMB

HB Series
SW IND PB RND WHITE LED DIFF AMB

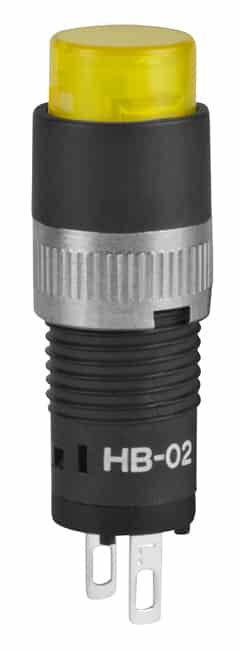

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HB02KW01-6B-DB
Description
SW IND PB RND WHITE LED DIFF AMB
Series
HB
Type
LED
Lamp Color
Amber
lens color
White
lens transparency
Diffused
Voltage Rating
3.6V
Current
30mA
Lens Style Size
Round with Flat Top, 7.40mm
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.32" (8.13mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Round
Rating
0.03
