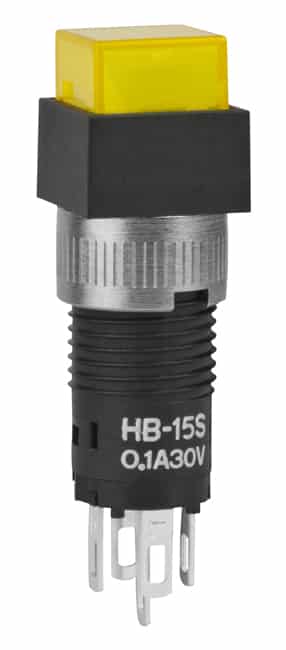

HB15SKW01-5D-DB

Subminiature Pushbuttons

HB Series
Subminiature Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HB15SKW01-5D-DB
Description
Subminiature Pushbuttons
Name
Pushbutton
Series
HB
Poles
SPDT
Circuits
On-Mom
Current Rating
100mA (DC)
Rating (AC)
30V
Rating (DC)
30V
Actuator Type
Square, Button
Actuator Cap Color
Amber
illumination color
LED, Amber
illumination voltage
2 VDC
Mounting Type
Panel Mount, Front
Termination Style
Solder Lug
panel cutout dimensions
Circular - 8.00mm Dia
Rating
0.4
Illumination
Illuminated
