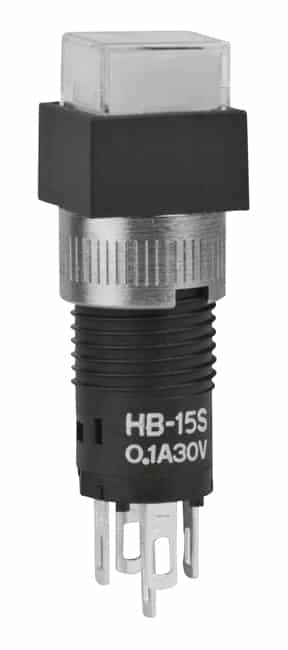

HB15SKW01-JB

SWITCH PUSH SPDT 0.1A 30V

HB Series
SWITCH PUSH SPDT 0.1A 30V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HB15SKW01-JB
Description
SWITCH PUSH SPDT 0.1A 30V
Name
Pushbutton
Series
HB
Poles
SPDT
Circuits
On-Mom
Current Rating
100mA (DC)
Rating (AC)
30V
Rating (DC)
30V
Actuator Type
Square, Button
Actuator Cap Color
Clear (White Filter/Diffuser)
Mounting Type
Panel Mount, Front
Termination Style
Solder Lug
panel cutout dimensions
Circular - 8.00mm Dia
Rating
0.4
Illumination
Non-Illuminated
