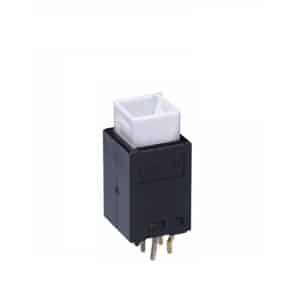

HB215SKG03CF

Subminiature Audio/Video Pushbuttons

HB2 Series
Subminiature Audio/Video Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HB215SKG03CF
Description
Subminiature Audio/Video Pushbuttons
Name
Pushbutton
Series
HB2
Poles
SPST-NO
Circuits
Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
illumination color
LED, Red/Green
illumination voltage
2.0, 2.25 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Rating
0.4
Illumination
Illuminated
