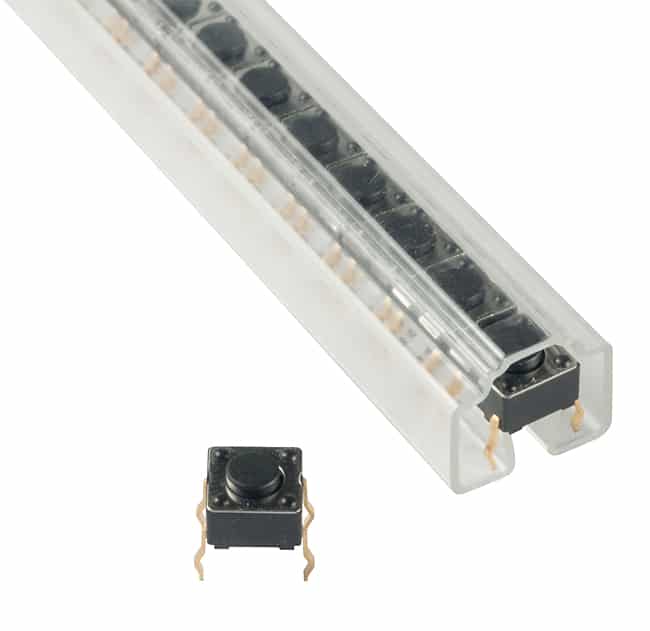

HP0215AFKP2-S

6mm Tactiles

HP02 Series
6mm Tactiles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HP0215AFKP2-S
Description
6mm Tactiles
Name
Tactile
Series
HP02
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
3VA @ 28VDC
Actuator Type
Standard
Mounting Type
Through Hole
Actuator Height Off PCB From Pins
4.30mm
Actuator Orientation
Top Actuated
Termination Style
PC Pin
Outline
6.20mm x 6.20mm
Illumination
Non-Illuminated
Operating Force
160gf
Features
Sealed - Flux Protection
