IS15BSAFP4CF

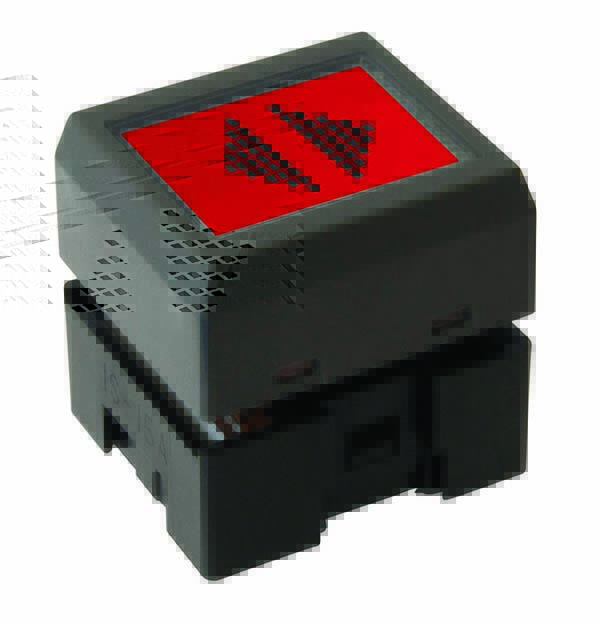

Compact LCD 36 x 24 Bicolor Pushbutton - IS15BSAFP4CF

SmartDisplay Programmables Series
Compact LCD 36 x 24 Bicolor Pushbutton - IS15BSAFP4CF

3D CAD Model Download Specifications Custom Assembly Check Inventory Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
IS15BSAFP4CF
Description
Compact LCD 36 x 24 Bicolor Pushbutton - IS15BSAFP4CF
Name
Programmable
Series
SmartDisplay™
Type
Pushbutton, LCD
Style
Compact
Display Mode
Black and White, FSTN Positive
LED Color
Red - Green
Viewing Area H x V
14.5mm x 11.8mm
Outer Dimensions
19.0mm x 18.0mm x 23.0mm
Pixel Format H x V
36 x 24
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.1A @ 12VDC
Supply Voltage
3.0 ~ 5.5V
Mounting Type
Through Hole
Termination Style
Straight PC Terminals
