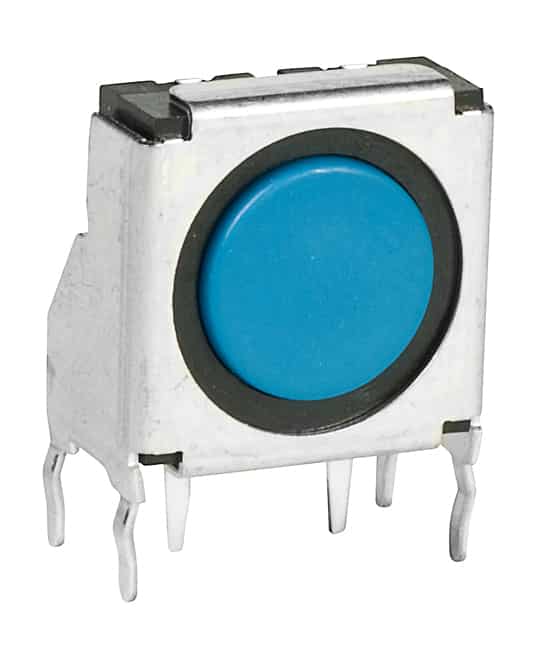

JB15FH

Low Profile Process Sealed Tactiles

JB Series
Low Profile Process Sealed Tactiles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JB15FH
Description
Low Profile Process Sealed Tactiles
Name
Tactile
Series
JB
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.05A @ 24VDC
Actuator Type
Round Button
Mounting Type
Through Hole, Right Angle
Actuator Height Off PCB From Pins
1.46mm
Actuator Orientation
Side Actuated
Termination Style
PC Pin
Outline
10.80mm x 10.80mm
Illumination
Non-Illuminated
Operating Force
176gf
ingress protection
IP67 - Dust Tight, Waterproof
Features
Process Sealed
