General Specifications
Part No.

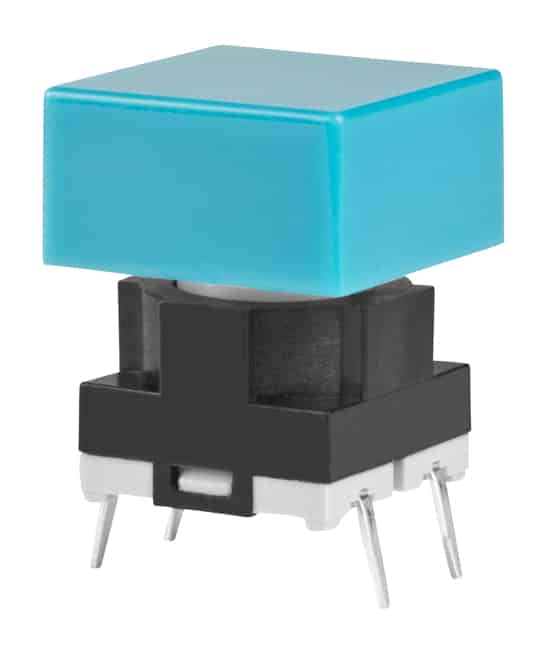

JB15HAP-2G
Description
Low Profile Process Sealed Tactiles
Name
Tactile
Series
JB
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.125A @ 24VDC
Actuator Type
Square Button
Mounting Type
Through Hole
Actuator Height Off PCB From Pins
14.70mm
Actuator Orientation
Top Actuated
Termination Style
PC Pin
Outline
10.00mm x 10.00mm
Illumination
Non-Illuminated
Operating Force
265gf
ingress protection
IP67 - Dust Tight, Waterproof
Features
Process Sealed
