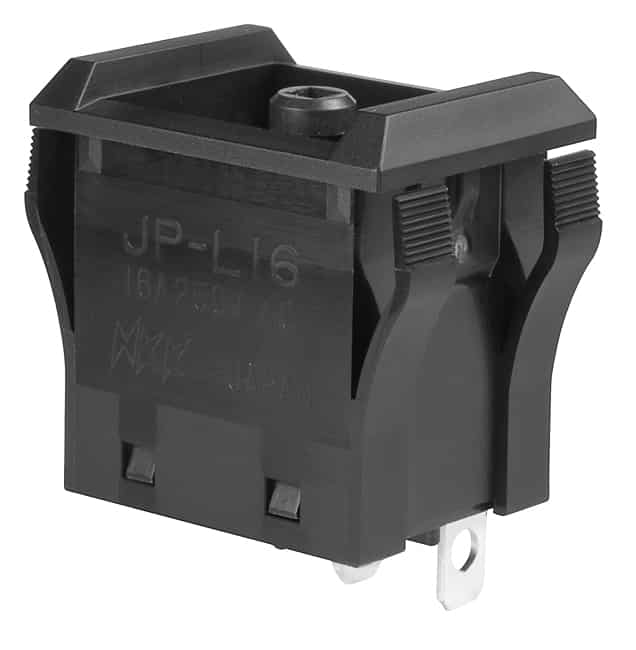

JPL16B

Internationally Approved Pushbuttons

JP Series
Internationally Approved Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JPL16B
Description
Internationally Approved Pushbuttons
Name
Pushbutton
Series
JP
Poles
SPST
Circuits
Off-On
Current Rating
16A (AC)
Rating (AC)
125V
Actuator Type
Rectangular, Button
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
Features
Tactile Feedback
panel cutout dimensions
Rectangular - 28.00mm x 21.20mm
Rating
16
Illumination
Non-Illuminated
