General Specifications
Part No.

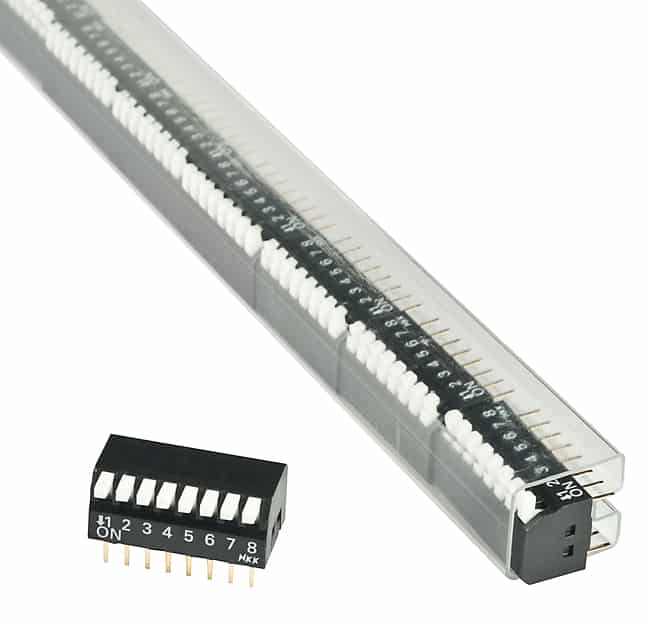

JS0308PP4-S
Description
SWITCH PIANO DIP SPST 25MA 24V
Name
DIP
Packaging
Tube
Poles
SPST
no positions
8
Current Rating
25mA
Voltage Rating
24VDC
Actuator Type
Piano
actuator level
Raised
contact material
Phosphor Bronze
contact finish
Gold
height above board
0.362" (9.20mm)
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
pitch
0.100" (2.54mm), Full
washable
No
Rating
0.025
