General Specifications
Part No.

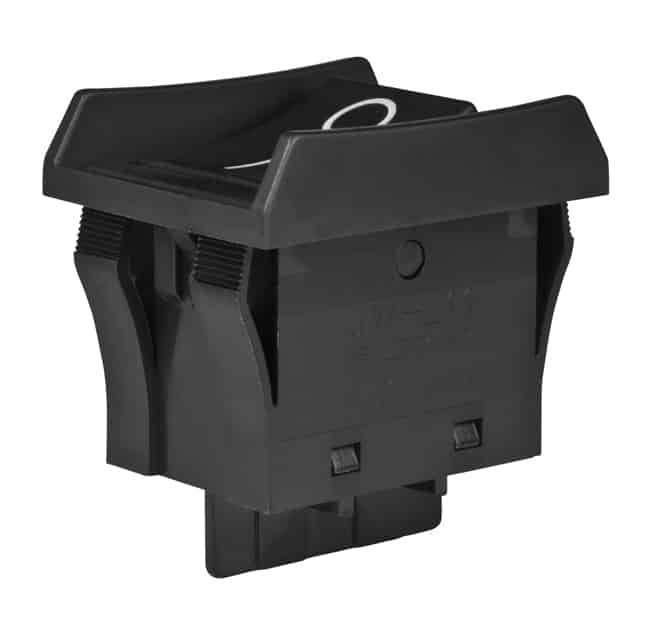

JWL11BA2A-A
Description
High Inrush 10 & 16 AMP Rockers
Name
Rocker
Series
JW
Status
Active
Poles
SPST
Circuits
On-Off
Current Rating
16A (AC)
Rating (AC)
125V
Actuator Type
Concave (Curved)
Actuator Cap Color
Black
Actuator Marking
O -
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
ingress protection
Dust Proof
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 29.50mm x 20.50mm
Rating
16
Illumination
Non-Illuminated
