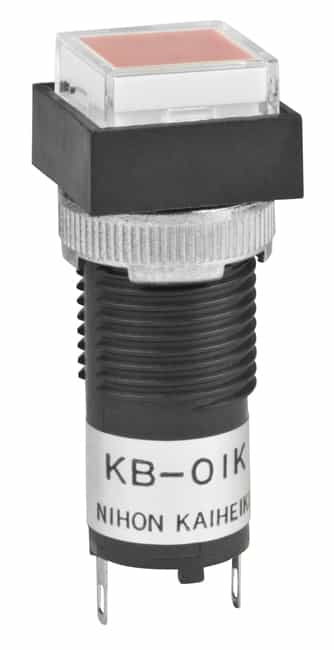

KB01KW01-5C05-JC

Indicator

KB Series
Indicator

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB01KW01-5C05-JC
Description
Indicator
Series
KB
Type
Indicators
Lamp Color
Red
lens color
Red
lens transparency
Clear
Voltage Rating
5V
Current
25mA
Lens Style Size
Square with Flat Top, 11.60mm
Mounting Type
Solder Lug
panel cutout dimensions
0.48" (12.19mm)
ratings
AC
panel cutout shape
Round
Rating
0.025
