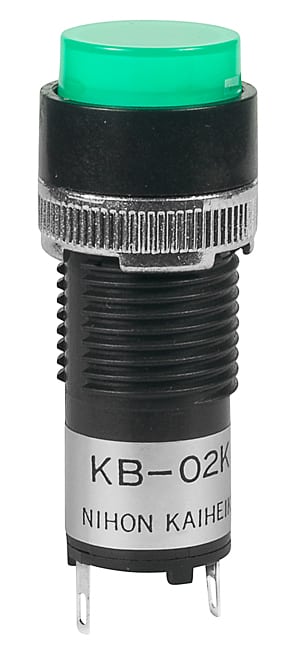

KB02KW01-6B-FF

SW IND PB RND WHT LED GREEN CAP

KB Series
SW IND PB RND WHT LED GREEN CAP

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB02KW01-6B-FF
Description
SW IND PB RND WHT LED GREEN CAP
Series
KB
Type
LED
Lamp Color
White
lens color
Green
lens transparency
Diffused
Voltage Rating
3.6V
Current
30mA
Lens Style Size
Round with Flat Top, 11.60mm
Mounting Type
Solder Lug
panel cutout dimensions
0.48" (12.19mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Round
Rating
0.03
