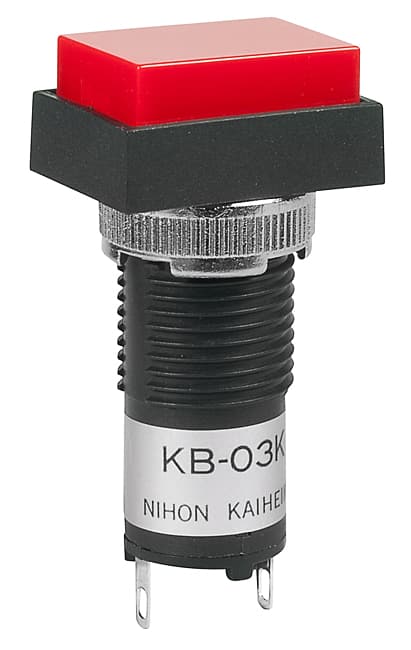

KB03KW01-12-CC

Indicators

KB Series
Indicators

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB03KW01-12-CC
Description
Indicators
Series
KB
Type
Indicators
Lamp Color
Red
lens color
Red
lens transparency
Diffused
Voltage Rating
12V
Current
60mA
Lens Style Size
Round with Flat Top, 11.60mm
panel cutout dimensions
0.48" (12.19mm)
ratings
AC
panel cutout shape
Round
Rating
0.06
