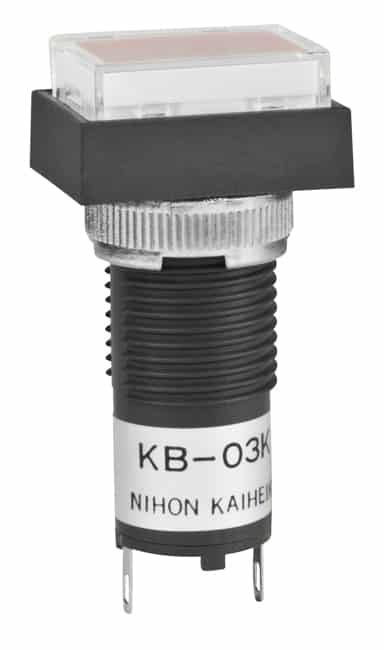

KB03KW01-5C24-JC

Indicators

KB Series
Indicators

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB03KW01-5C24-JC
Description
Indicators
Series
KB
Type
LED
Lamp Color
Red
lens color
Red
lens transparency
Clear
Voltage Rating
24V
Current
10mA
Lens Style Size
Rectangle with Flat Top, 16.10mm x 11.60
panel cutout dimensions
0.48" (12.19mm)
ratings
AC
panel cutout shape
Round
Rating
0.01
