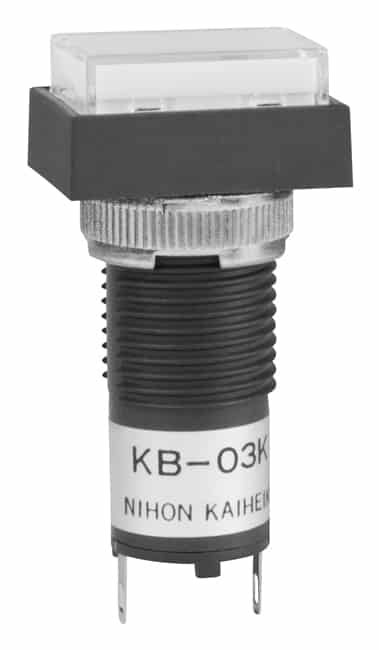

KB03KW01-5D-JB

Indicators

KB Series
Indicators

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB03KW01-5D-JB
Description
Indicators
Series
KB
Type
LED
Lamp Color
Amber
lens color
White
lens transparency
Diffused
Voltage Rating
2V
Current
30mA
Lens Style Size
Rectangle with Flat Top, 16.10mm x 11.60
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.48" (12.19mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Round
Rating
0.03
