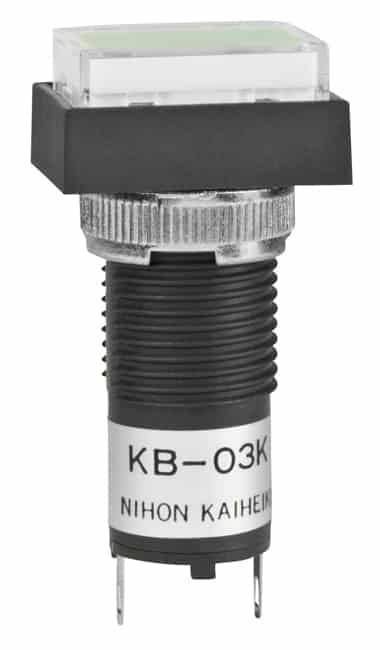

KB03KW01-5F-JF

Indicators

KB Series
Indicators

Not recommended for new designs.
General Specifications
Part No.
KB03KW01-5F-JF
Description
Indicators
Series
KB
Type
LED
Lamp Color
Green
lens color
Green
lens transparency
Clear
Voltage Rating
2.1V
Current
30mA
Lens Style Size
Rectangle with Flat Top, 16.10mm x 11.60
Mounting Type
Solder Lug
panel cutout dimensions
0.48" (12.19mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Round
Rating
0.03
