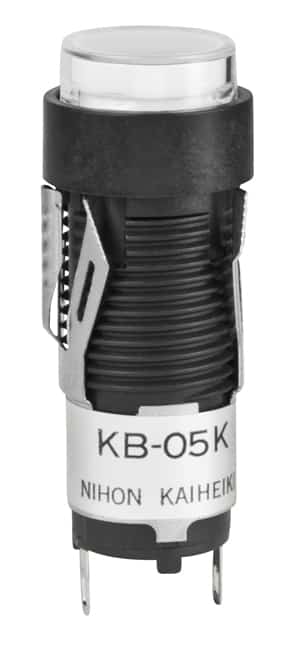

KB05KW01-6F-JB

Indicators

KB Series
Indicators

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB05KW01-6F-JB
Description
Indicators
Series
KB
Type
Indicators
Lamp Color
Green
lens color
White
lens transparency
Clear
Voltage Rating
3.3V
Current
30mA
Lens Style Size
Round with Flat Top, 11.60mm
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.48" (12.19mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Round
Rating
0.03
