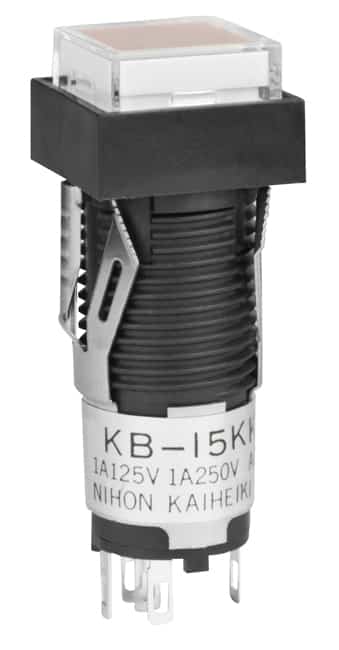

KB15KKW01-5C24-JC

Miniature Pushbuttons

KB Series
Miniature Pushbuttons

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB15KKW01-5C24-JC
Description
Miniature Pushbuttons
Name
Pushbutton
Series
KB
Poles
SPDT
Circuits
On-Mom
Current Rating
1A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Square, Button
Actuator Cap Color
Clear (Red Filter/Diffuser)
illumination color
LED, Red
illumination voltage
24 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.30mm Dia
Rating
1
Illumination
Illuminated
