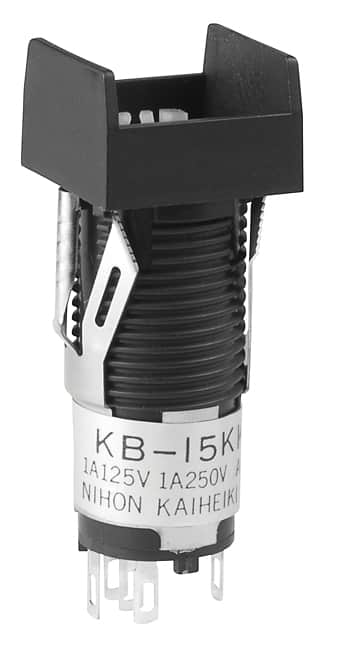

KB15KKW01B

SWITCH PUSHBUTTON SPDT 1A 125V

KB Series
SWITCH PUSHBUTTON SPDT 1A 125V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KB15KKW01B
Description
SWITCH PUSHBUTTON SPDT 1A 125V
Name
Pushbutton
Series
KB
Poles
SPDT
Circuits
On-Mom
Current Rating
1A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Plunger for Cap
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
Features
With Barrier
panel cutout dimensions
Circular - 12.30mm Dia
Rating
1
Illumination
Non-Illuminated
