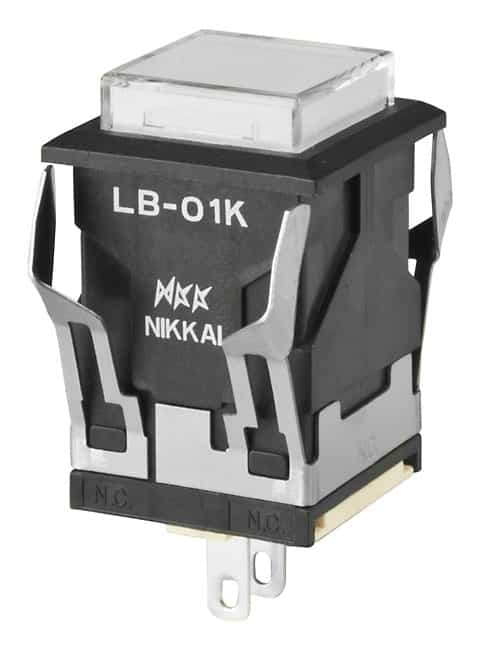

LB01KW01-6G-JB

Indicator

LB Series
Indicator

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB01KW01-6G-JB
Description
Indicator
Series
LB
Type
Indicators
Lamp Color
Blue
lens color
White
lens transparency
Clear
Voltage Rating
3.3V
Current
30mA
Lens Style Size
Square with Flat Top, 13.20mm
panel cutout dimensions
0.64" (16.26mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Round
Rating
0.03
