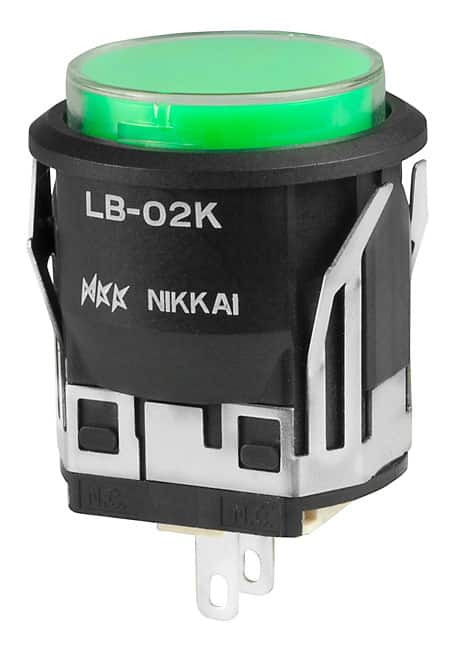

LB02KW01-05-JF

Indicator

LB Series
Indicator

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB02KW01-05-JF
Description
Indicator
Series
LB
Type
Indicators
Lamp Color
Green
lens color
Green
lens transparency
Clear
Voltage Rating
5V
Current
115mA
Lens Style Size
Round with Flat Top, 19.00mm
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.87" (22.10mm)
ratings
AC
panel cutout shape
Round
Rating
0.115
