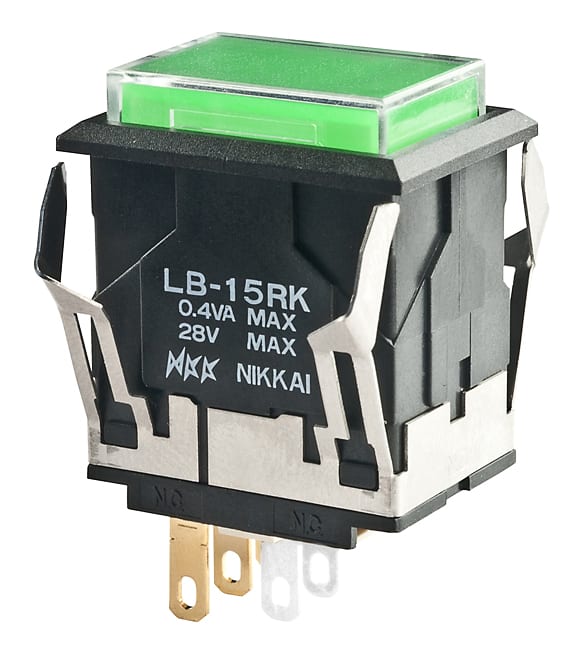

LB15RKG01-6F-JF

SWITCH PUSH SPDT 0.4VA 28V

LB Series
SWITCH PUSH SPDT 0.4VA 28V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB15RKG01-6F-JF
Description
SWITCH PUSH SPDT 0.4VA 28V
Name
Pushbutton
Series
LB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Rectangular, Button
Actuator Cap Color
Clear (Green Filter/Diffuser)
illumination color
LED, Green
illumination voltage
3.3 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP65
panel cutout dimensions
Rectangular - 22.40mm x 16.20mm
Rating
0.4
Illumination
Illuminated
