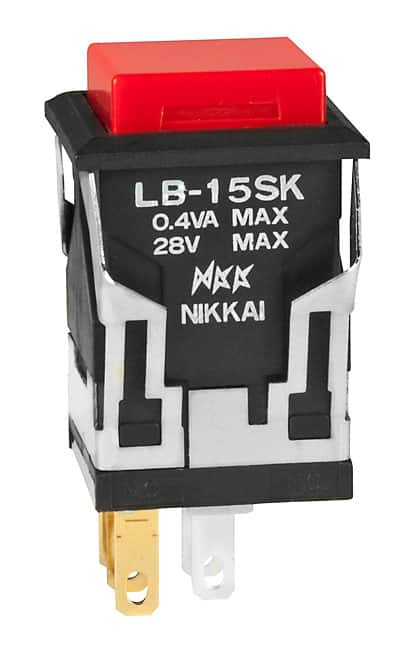

LB15SKG01-28-CJ

Standard Size Snap-In Pushbutton

LB Series
Standard Size Snap-In Pushbutton

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB15SKG01-28-CJ
Description
Standard Size Snap-In Pushbutton
Name
Pushbutton
Series
LB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Square, Button
Actuator Cap Color
Red
illumination color
Incandescent, Red
illumination voltage
28 VAC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
panel cutout dimensions
Square - 16.20mm_
Rating
0.4
Illumination
Illuminated
